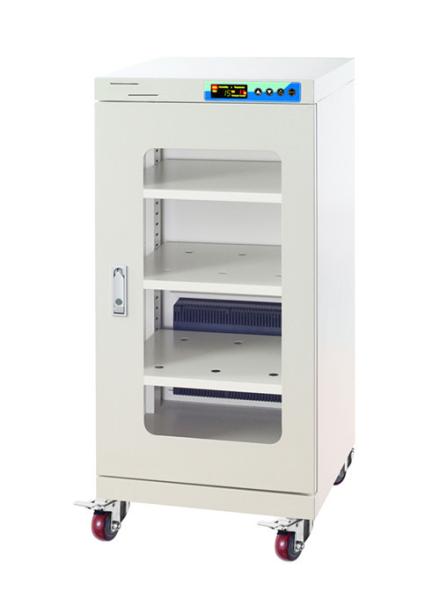

Stainless Steel Digital Nitrogen Cabinet , Energy Saving Humidity
Control Dry Cabinet
Control the humidity: 20% -60% RH 10% -20% RH 1% -10% RH..
Product Specifications Model:
Product Name | Model | Humidity control range | Control mode |
Antistatic humidity Electronic Cabinets | GRD160F | 20%-60%RH | Can be set |
Low humidity Antistatic Electronic Cabinets | GRD160BF | 10%-20%RH | Automatic |
Ultra-low wet Antistatic Electronic Cabinets | GRD160CF | 1%-10%RH | Automatic |
Technical parameters:
Dimensions (W * D * H): 450 * 450 * 1010mm
Internal Dimensions (W * D * H): 405 * 420 * 840mm
Capacity : 160L
Shelf : 3
Power : 110V/220V 50Hz/60Hz adaptive
Average power : 15-60W
Color: gray and black
Accuracy: Humidity : ± 3% RH, temperature : ± 1 ℃
Display : High brightness LED full-screen , independent of
temperature and humidity display
Anti-static coefficient : 106-108
ESD casters
Ground wire : 1MΩ ( length : 800 mm)
Optional : lighting system inside : inside with LED lighting , and
with a membrane keypad switch, easy to observe the items inside
without opening the door state
◆ Main technical characteristics
Humidity Sensor: American original brand honeywell error is less
than ± 2% RH precision humidity sensor. Modular design , high
precision and high stability.
Temperature and humidity control and display : precision LED
digital temperature display full-screen display :. -9 ℃ ~ 99 ℃,
accuracy ± 1 ℃. Humidity Display : 0% ~ 99% R. Accuracy ± 3% RH.
Display accuracy and stability, long service life.
Humidity Built central controller modular design , avoid touching
extremely dangerous , safe and reliable. Humidity setting with
memory function, power failure without re- setting. Microcomputer
automatic operation, without human care
Dehumidification Host : use technology cooperation with Japan ,
preclude the use of hygroscopic materials imported polymer and
China's patent . The shell is made of imported high-temperature
plastic particles repression. Durable without deformation.
Power system: UL CE certification preclude the use of the power of
Switching power supply system
Cabinet structure : cabinet material : 1.0mm high quality steel
enclosure with several automatic punch presses and CNC sheet metal
equipment high production, manufacturing precision , good airtight
enclosure . Bian cabinet surface coating with imported resins,
automatic powder coating line . Good quality and appearance .
Bottom of the cabinet is installed 360 ˚ rotation with brake
casters for easy mobility and fixed .
Door windows : window frames crimping 5.0mm high-strength tempered
glass door handle using planar integrated handle the pressure of
high-strength lock with anti-theft feature .
Load Laminates : Laminates used to strengthen the structure design
, high strength material contained , uniform load up to 100kg load
bearing force , the height gap can be adjusted according to the
height to put items . Make it easier for storage . Space
utilization higher.
Dehumidification principle: Electronic Cabinets dehumidification
host using environmentally friendly absorbent polymer material ,
the use of shape memory alloy systems dehumidification method , a
unique patented technology, with intelligent microcomputer program
control system simply set the desired humidity control device
automatically after work . . host shell is made of high-temperature
flame-retardant materials , to prevent the occurrence of safety
hazards. Automatic moisture off the design , you can still use
chemical absorbent bit features to dampness, humidity rises within
24 hours does not exceed 10 %. No damp , no heat, no dripping .
Energy saving, long life .
◆ How it works: dehumidification host the door open, the outer door
closed , environmentally friendly polymer materials absorb moisture
vapor within the Electronic Cabinets , the door is closed, the
outer door opened, absorbent material heater , so the moisture
evaporates into the Cabinets , the shape of the and internal memory
alloy spring responsible for external doors open and close . above
steps under program control system intelligent microcomputer
control loop , gradually reduce the humidity in the Cabinets .
◆ Uses: mainly storing various forms of integrated circuit (IC)
As monolithic , LSI LSI, VLSI VLSI, Bipolar, MDS, CCD, MCM, DIP,
SOP, SSOP, TSOP, VSOP, SDIP, SIP, SOJ, SVP, QFJ, CSP, KGD, PGA,
QFP, TCP, LCA and BGA packaging.
