High-gain Cell Phone Signal Repeater boosters Automatic Level Control

    Buy cheap High-gain Cell Phone Signal Repeater boosters Automatic Level Control from wholesalers

    Buy cheap High-gain Cell Phone Signal Repeater boosters Automatic Level Control from wholesalers
    • Buy cheap High-gain Cell Phone Signal Repeater boosters Automatic Level Control from wholesalers

    High-gain Cell Phone Signal Repeater boosters Automatic Level Control

    Ask Lasest Price
    Brand Name : EST
    Certification : CE&ROHS
    Model Number : EST-DCS950
    Delivery Time : 1-3 working days
    Payment Terms : 100% before shipment
    Supply Ability : 500pcs/week
    • Product Details
    • Company Profile

    High-gain Cell Phone Signal Repeater boosters Automatic Level Control


    High-gain Cell Phone Signal Repeater boosters Automatic Level Control


    A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.


    Introduction To Mobile Phone Signal Repeater

    1. Enhance Mobile Phone
    Signal Strength

    2. Improve
    Communication
    Quality

    3. Reduce
    Cellphone
    Radiation

    4. Protract
    Cellular Battery Life

    5. Economic Building Cost

    6. Easy Operation

    7. Easy Installation

    8. Build-in Power Supply


    The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal. A mobile phone repeater could also improve indoor ctromagnetism environments, protract cellular battery life and reduce radiation of cellphones.


    Feature:

    1. High-gain linear power amplifier;
    2.Automatic level control;
    3.Ultra-low noise receiver amplifier;
    4.No interference to the base station and no need to adjust the parameters of the original system and base stations after installation;
    5. Stable and reliable EMC design;
    6. It neither increases base station background noise nor declines the communication quality of base station;

    7. Full-duplex communication mode;
    8. Spurious emission, beautiful outlook and smart size


    Technique


    Frequency range

    Uplink:1710—1785MHZ

    Downlink1805--1880MHz

    Gain ( dB)

    Uplink Gp≥55 Downlink Gp≥60

    Export power (Po)

    ≥17dBm

    Pass band ripple

    ≤3dB

    I/O impedance

    50Ω/N connector

    Noise figure

    ≤4dB

    Transmission Delay

    ≤0.5μs

    Ambient temperature

    -10℃~60℃

    Power supply

    AC110~240V 45~55Hz

    Size

    200 ×130 ×20 mm

    Reliability

    To the GB6993-86 standard

    Electromagnetic

    compatibility

    To the ETS300 694-4 standard

    Function

    a) Power supply LED denote

    b) Export power LED denote

    coverage area

    200 m2

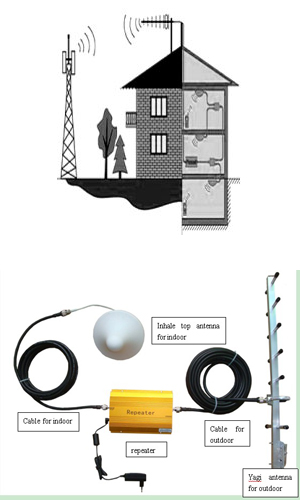

    Specification sInstallation Sketch Map


    Installation Approaches

    1. Fix up outdoor antenna reception on housetop and point to signal tower.
    2. Connect outdoor antenna to “outdoor” port in repeater machine through cable.
    3. Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
    4. Plug power adaptor into AC power socket and finish installation.

    Technique Supporting


    1. If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
    2. If can not call out, please adjust the direction of outdoor antenna.
    3. If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antenna have distance of 20

    Accessories


    SelectionOutdoor antenna use 7 unit yagi type antenna, indoor antenna use board or rooftop antenna and signal wire use coaxial-cable.


    Packing list


    Main unit 1pc
    Power supply 1pc
    User manual 1pc
