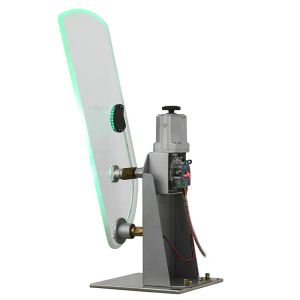

110V/220V Stainless Steel Flap barrier Gate with Anti-tailing Function For Metro Stations

Half Height Safety Barrier Gate Controlled Access Flap Turnstiles

Flap turnstile:

Flap turnstile (barrier) is a high-tech product aimed at the pedestrian access intelligent management, which is an upgraded product based on intelligent tripod turnstile, swing barrier. The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve access intelligetilized control and management.

Applications:

High class communities, intelligent buildings, hotels, subway stations and other high level ve

Functions and Features:

1. Flap work synchronously.

2. Malfunction self-detection. Which is easy for operation and maintenance.

3. Operational mode can be set up through the built-in menu on the control board.

4. Flap auto reversing when meeting exterior force.

5. Audible and visual alarm in case of unauthorized access.

6. Auti-collision function, the flap will stay close if not receiving the open signal.

7. The design is of integration of machinery and electronic structure, with special drive style and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure

8. Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.

9. Flaps open when power off, and auto-close when power on.

10. Compatible with diverse access control devices.

11. Pedestrian flow directions can be single or double directions.

12. Available for two-way traffic lights, which can prompt the state---pass or no-entry.

13. RS232 and LAN sockets are available to connect the computer.

Technical Specifications:

1. Housing matrial: 304 grade stainless steel or painted steel(thickness:1.5mm)

2. Flap wing: acrylic glass, or resin, or PVC

3. Net weight: 70kgs/unit

4. Dimension:1200*270*1000mm

5. Barrier wing: length 275mm

6. Standard passage width: 600mm

7. Power supply: 220V±10%, 110± 10%

8. Motor: DC12V

9. Input interface: dry contact signal or 12V electric level signal or DC12V pulse signal with width of more than 100ms, driving current: >10mA

10. Normal life-span: 3 million times

12. Transit speed: 30-40 persons/min

13. Opening/Closing time:0.5 second

14. Starting time after power is on: 3 seconds

15. Automatic reset time after fault: 10 seconds

16. Working environment: indoor, outdoor(with a tent over)

17. Working temperature:-25°C-50°C

18. Relative humidity:≤90% no condensation
