Brand Name : | HAIDA |
Certification : | ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC |
Model Number : | HD-F762 |
Price : | Negotiable |
Delivery Time : | 20 days after order confirmed |
Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
Supply Ability : | 300 Sets per Month Haida |

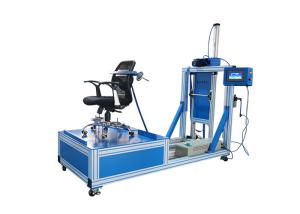

Constant Force Furniture Testing Machines for Pounding Foam Dynamic Fatigue Testing
Introduction :
Single-seat sofa Durability Tester Overview : Can a sofa seat surface , backrest and armrests for alternating endurance test , each equipped with a pressure force point sensor reads pressure .
Single-seat sofa Durability Tester design standards : EN4875
Main function :
This test method is to simulate the daily use conditions , the test sofaability to bear the long-term repeatability of the load . Durability test ofthe sofa seat , back and arm , test will shape , mass loading module , to load the form , frequency regulation , respectively , the seat , back andarm suface loading .
The seat surface loading capacity is 750 Newton back loading force is400 Newton test cycle : 25000 to 200000 times , in addition to the armrest test can
Single power EN4875
Pressure sensor accuracy | 0 . 3% |
Full range control panel | touch screen programmable controller + color display |
The maximum size | ( L * W * H ) 1000 x 1000 x 1200mm |
Total weight | 400kg |
Power source | 1 , AC220V , 50Hz , compressed air 7kg/c ㎡ |
![]() |
