    Automatic Stator Winding Inserting Machine For Generator Motor , Three Working Station

    Ask Lasest Price
    Brand Name : Nide
    Model Number : Q3L1-75/130T
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 500 sets per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Automatic Stator Winding Inserting Machine For Generator Motor , Three Working Station


    Automatic Stator Winding Inserting Machine For Generator Motor , Three Working Station


    Machine discription


    This machine adopts movable winding inserting tooling with three working station. One is used to equip with mechanical arm to transfer the coil to the station. The second one is used to cut and form wedge. The third is used to do coil and wdge inserting. This machine is with single-tooth wedge protective function and two sides'mechanical loading and unlaoding function. It can transfer the stator to the automatic stator prodcution line. The working efficacy is very high with three working station.


    Application:
    It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.


    Main technical data

    Working station3
    Control methodPLC
    Stator stack length30~120mm
    Stator OD≤150mm
    Stator ID50~120mm
    Wire diameter0.18~1.2mm
    Air source0.6~0.8Mpa
    Power supply380V 50/60HZ 11KW
    Weight3500KG
    Deminsion2550mmX 2230mmX2300mm

    Picture show

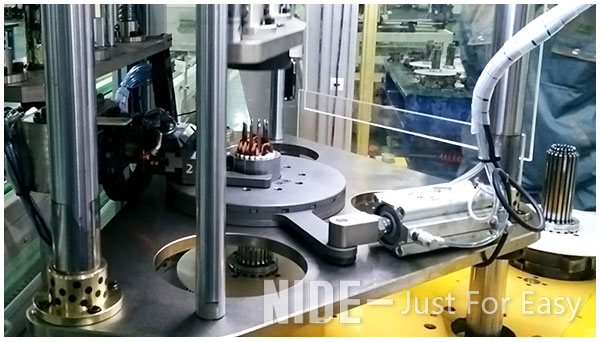

    Automatic Stator Winding Inserting Machine For Generator Motor , Three Working Station-1

    Automatic Stator Winding Inserting Machine For Generator Motor , Three Working Station-2Automatic Stator Winding Inserting Machine For Generator Motor , Three Working Station-3


    Competitive advantages

    Variety of application, easy operation.

    We have Overseas Service Center.

    Machine is controlled by PLC. All the parameter can be set in the touch screen.

    It is suitable for stators with different model number and dimension.

    The operation and tooling change process is easy.

    We could customize machine for our customer as per their requirement.

    We directly supply our machines to many countries.


    This machine has touch screen. All the parameter can be set in the touch sceen.
