Customized Adjustable Head Tail Stock Welding Positioner For 50T
Weldment
Brief introduction:
Headstock & tailstock welding positioner used to rotate the rotable
weldments by head power unit.
Its purpose is to position the weldment to suitable welding
position, or rotate the weldment by welding speed, complete the
automative welding procedure.
Competitive Advantage:
- Offer lifting and electromechanical rotation
- Capacities from 1,000 kg. to 100 tons
- Slide positioning for varying fixture lengths
- Low-maintenance brushless motor
- Easily accessible hydraulics for inspection and maintenance
Main Technical Parameters
Normally customize as per user work piece & requirement.
Model | Load
(Kgs.) | Rotation motor power
(Kw.) | Rotation Speed
(RPM) |
HTS 10 | 1000 | 0.55 | 0.036-1.0 |
HTS 20 | 2000 | 0.75 | 0.036-1.0 |
HTS 30 | 3000 | 1.1 | 0.036-1.0 |
HTS 40 | 4000 | 1.1 | 0.036-1.0 |
HTS 50 | 5000 | 1.1 | 0.036-1.0 |
HTS 60 | 6000 | 1.1 | 0.036-1.0 |
HTS 75 | 7500 | 1.1 | 0.036-1.0 |
HTS 100 | 10000 | 1.5 | 0.036-1.0 |
HTS 150 | 15000 | 2.2 | 0.036-1.0 |
HTS 200 | 20000 | 5.5 | 0.023-0.65 |
Description of head tail stock welding positioner:
- Headstock and tailstock welding positioners generally handle the
rotation of long work pieces around a horizontal centerline.
- The Headstock is generally powered unti to drive the work rotation.
- The tailstock is free-wheeling with no other support under the work
piece.
- Long complex structures can be turned to make the work execution
easier for the welder.
- In some cases only a headstock unit is required as shown in the
pipe-spool fabrication arrangement .
- Head tailstock positioners can be used for a variety of parts and
suitable for long objects.
- Typically a head & tailstock welding positioner is used for long
rectangular shapes that must be supported from both ends.
- Both fixed height rotation centerline and power elevating models
are available for ergonomic placement of the weldment.
- Head stock-tail stock positioners capacity ranges up to 100 Tons
and various flexibility in job handling.
- Other versions of machines available with variable height
adjustments (center height adjustment to cater larger job swing)
and other control possibilities.
- With a large rotation speed range, all welding processes can be
accommodated, such as MIG, TIG, SAW welding.
- Apart from standard configuration, advance versions are available
including elevation of headstock- tail stock and movement of tail
stock over rail.
Application:
1. Pipe to pipe (or Elbow or Flange);
2. Shaft, dish, cylinder, etc welding;
3. Framework of car, digger arm, loading machine, digger machine;

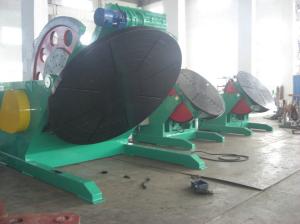

Workshop photo:

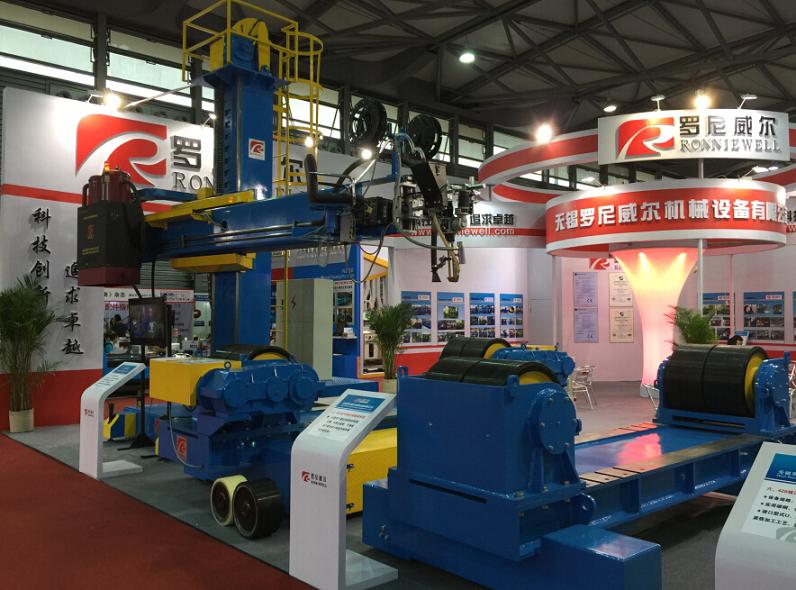

Exhibition Photo:
Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own
engineer team, who is good at design, develop & build special
solution catering for your individual requirement.
Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for
oversea trading. Depends on your location, combined transport by
rail and sea is also an option. Certainly railway transportation is
also acceptable if it is the most suitable approach.
After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole
machine quality. During this time, any issue proved because of the
machine flaw itself,we would take the whole responsibility of it.
Except of the guaranty period,technical advisory support is
available freely covering the whole using life of the machine.
Engineer service on user premises is also available for necessary.
Name of the machine:
welding positioner,positioner welding,welding rotator,welding
table,welding turning table,rotary turning machine,head to tail
positioner,welding turning table,head & tail stock welding
positioner, head and tail stock positioner
