| Brand Name : | Medpharm |
| Model Number : | MD-1.0Y |
| Certification : | CE/SGS |
| Price : | Negotiation |
| Payment Terms : | T/T in advance, LC AT SIGHT |
| Supply Ability : | 10 pcs per month |
| Delivery Time : | 30 working days after received your payment |
Pre vacuum And Post Vacuum Phase Hospital Sterilizer With Digital
Display Window
Features

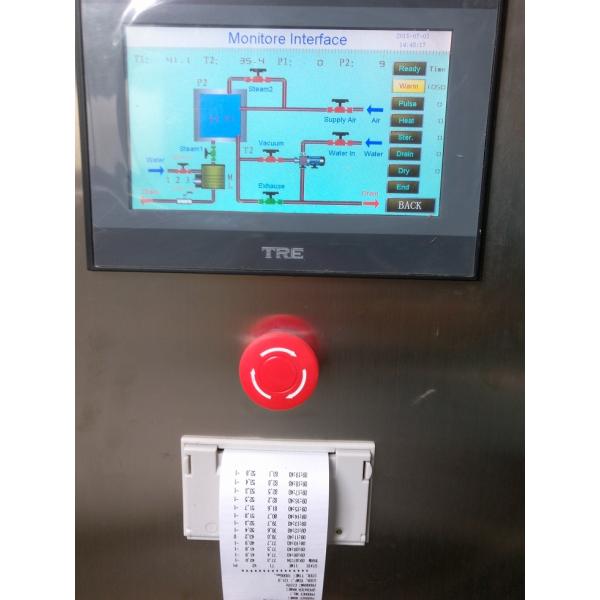

User friendly control panel
Frontal service door realized in one single stainless steel AISI
304 panel
Base equipped with proper guides for an easy and safe sliding of
the autoclave
Height adjustable feet enabling an easy floor levelling of the
autoclave
Possibility to have the technical area on the left or on the right
side of the autoclave
Process piping made of stainless steel AISI 304 with tri-clamp
fittings
Water-ring vacuum pump
Main Parameters
Model | Chamber Size | Overall Size | Net Weight | Steam | Water | Power |
W*H*D mm | W*H*D mm | Kg | Kg/cycle | Kg/cycle | KVA | |
MD-0.8Y | 680*1180*1000 | 2200*2000*1410 | 1480 | 35 | 80 | 3 |
MD-1.0Y | 680*1180*1250 | 2200*2000*1660 | 1630 | 40 | 100 | 4 |
MD-1.2Y | 680*1180*1500 | 2200*2000*1910 | 2030 | 45 | 120 | 4 |
MD-1.5Y | 680*1180*1870 | 2200*2000*2280 | 2230 | 50 | 150 | 4.5 |
MD-2.0Y | 1000*1200*1700 | 2800*2000*2110 | 2490 | 60 | 200 | 4.5 |
MD-3.0Y | 1000*1500*2000 | 2800*2200*2410 | 3050 | 90 | 300 | 5 |
MD-4.0Y | 1000*1500*2670 | 2800*2200*3080 | 3700 | 120 | 400 | 6 |
MD-5.0Y | 1000*1500*3340 | 2800*2200*3750 | 4600 | 150 | 500 | 8 |
MD-6.0Y | 1000*1500*4000 | 2800*2200*4410 | 5400 | 180 | 600 | 8 |
MD-8.0Y | 1000*1500*5340 | 2800*2200*5750 | 7000 | 240 | 800 | 10 |
Description
Applications
Textiles, instruments, rubbers. Process cycle and programmed
customized.



Brochure load down from here
Medpharm
medical large steam autoclave brochure.pdf
|
