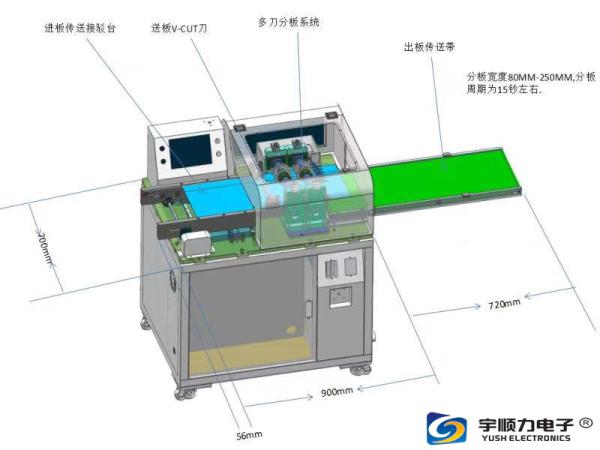

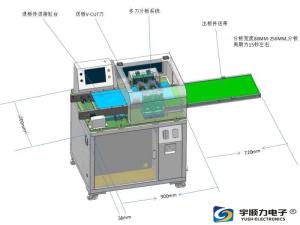

Computer Dremel PCB Depaneling Machine Can Cut Plurality Plates

Computer Dremel PCB Depaneling Machine Can Cut Plurality Plates

Features:

1. stencil for pcb depaneling,depanelization of pcb,dremel pcb milling depaneling

2. The machine adopts computer screen control unit has a counter, can be preset process yield, up and down cutter cutting the gap with a display screen visual display;Multi-group knife

3. When PCB board sub-board cut, one can cut a plurality of plates;

4. The whole machine cutter wheel trim: 0-5mm;

5. distance between the knife and the knife can be adjusted for cutting a single PCB board width of 15-20mm;

6. Imported SKH51 high-speed steel blade, wear-resistant, long life;

7. Cut speed can be set by the board to facilitate adjustment knob;

8. scoreboard stroke limitation;

9. PC board split thickness: 0.2-5.0mm;

10. conveyor belt line drawings can be installed on a separate PCB board can be sent directly out easy job, you can direct docking with the water pull, reducing take place;

11. This machine acceptable to accommodate the LED panels, fiberboard, aluminum plate (400mm above the long plate) and special plates segmentation;

12. The machine uses simpler knife sub-board operation, high efficiency for the production batch.
Third, the technical instructions:

Maximum scoreboard length: unlimited
Min thickness: 0.6-5.0mm
Sent to board speed: 300-500mm / sec
Blade Material: SKD11
Working temperature: 10-35 ℃
Storage temperature: -20-50 ℃
Power: 230V
Dimensions: 2160mm * 570mm * 1050mm

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
