Passage Width 600 MM Full Automatic Tripod Barrier Gate With Coin
Accepter / Counter Function
Access control system:
1. we can offer the access control system: fingerprint/ face
recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
Specifications:
| Technical Parameters |
| Size | 1200 mm (L) * 280 mm (W) * 980 mm (H) |
| Working voltage | AC220±10%V 50±10%HZ |
| Arm width: | 510 mm |
| Support force of arm: | 60 kg |
| Passage width: | ≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: | When power off, arm open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: | standard RS 485 interface, distance ≤1200m |
| Housing material | domestic standard 304# stainless steel |
| Working movement | DC 24V solenoid valve |
| Input interface: | +12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
Application:
1. Entertainment Places: Movie theaters, Fitness halls, Country
clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.
2. Public Places: Subway, Airports, Stations,Library, Bookstores,
Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
3. Business Organizations:
Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance
and Exit
Attendance.
Feature & function:
The Tripod Turnstiles are very robust products able to function
inside and outside buildings.
The Tripod Turnstile is a waist-height tripod turnstile in a
self-supporting housing (2 Feet).
The Tripod Turnstile with dropping arm to free the walkway in the
event of an emergency or for certain applications
1.Security
. Active arm can drop clear (emergency or application)
Arms cannot be removed without special tools
. Mechanism cannot be forced
2.Flexibility
. Removable end covers for easy integration of any type of access
control device
. Numerous configurations covering all cases of pedestrian access
control
3.Economic
. Inactive arms do not hinder the passage
. Simple to install
Description:
1. System Integration: This equipment is integrated with
mechanism,electric and micro- controller and
various kinds of identification technologies,compatible with
IC,ID,barcode,fingerprint reader and so on, to
provide intelligent control and management to flow control.
2. Standard features: Made of 304 /316 stainless steel,Goldantell
tripod turnstile with nice and elegant
shape, anti- rust,durable, Resistant to external damage.
3. Standard Functions: Rectangular box and brake lever to be a
passage,provide orderly passage to
people. Prevent illegal in and out.Arms off in emergency case.
4.Classification: 1) full automatic 2) semi-automatic 3) manual,
the semi-automatic is the most widely used.
5. Application place: This item is widely used in
station,pier,subway,factory,office building,intelligent
community, hotel, clubs, enterprise, etc.
Projects cases show:
Access control system | Real pictures |

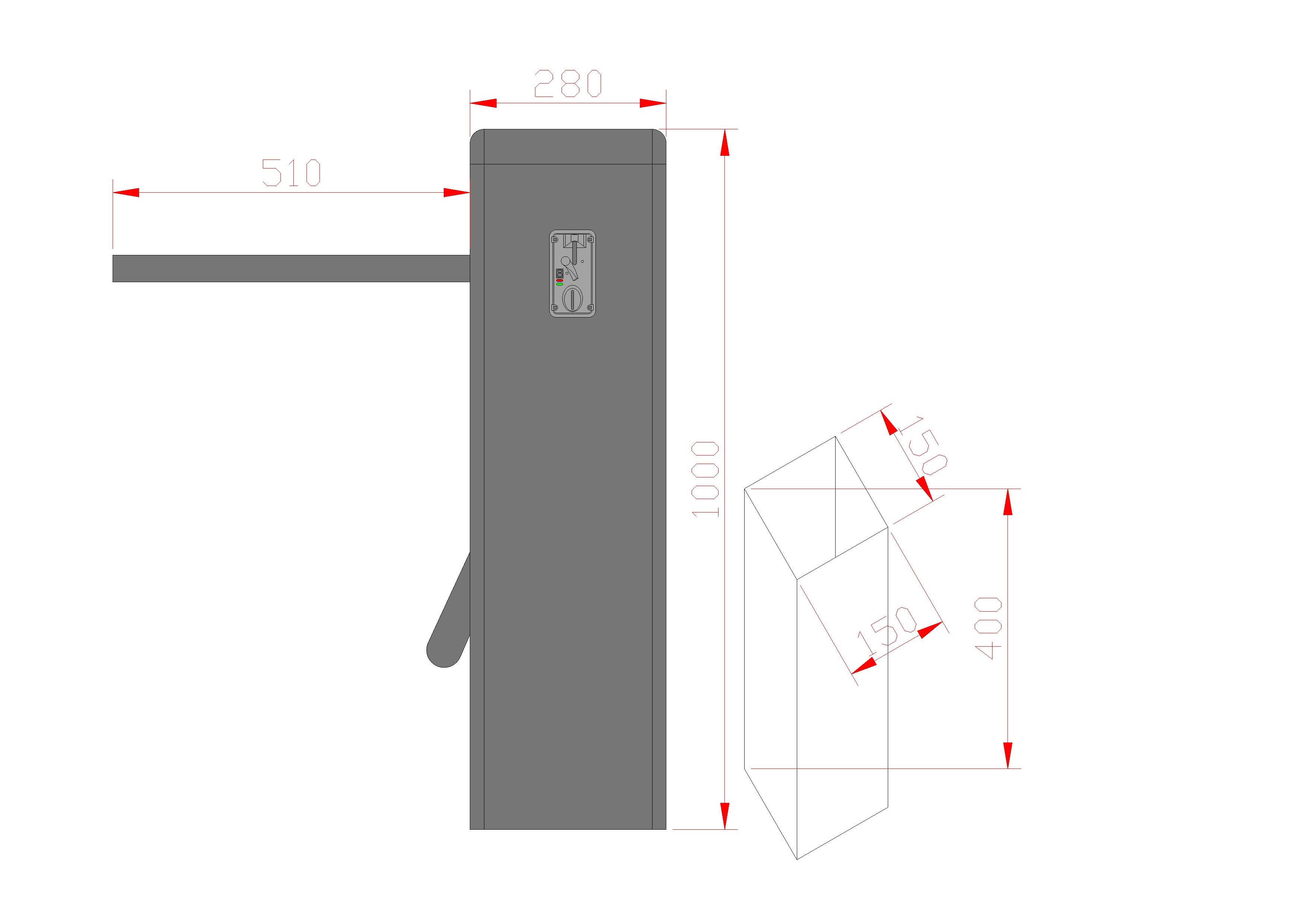

| 1. Coin operation |  | design picture: |

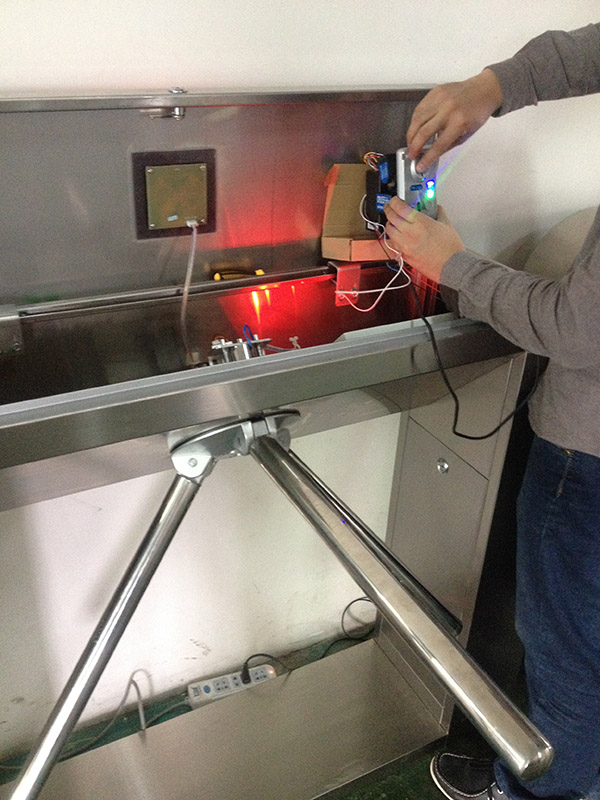

2.Fingerprint
recognation |  |
Appearance, Dimension, Material & Surface Finish
1. Appearance: customized according to customer’s requirement.
2. Material of the cabinet: 304 / 316 grade stainless steel.
3. Stainless steel thickness of the cabinet: customized within
1.2~2.0mm.
4. Surface finish of the cabinet: satin finish / polishing / anti-
fingerprint/frosted finish / electroplating /
baking finish.
Package:
1. With access control system, need the closed wooden case packing.
2. Without the access control system, two ways for your choice:
crate and closed wooden box.
Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product
shape design,custom logo,custom
package.
2. Friendly and professional customer service people help you in 16
hours.
3. We can provide not only product, but also system software
management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a
video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by
fastest express,you no need bear
any fee.
