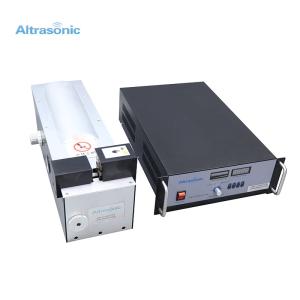

Low Energy Demand Ultrasonic Metal Welding Machine For Joining
Nonferrous Metals
Description:
ultrasonic metal welding machine is the high frequency vibration
between the work piece surface, until the contact surface heating
and welding together. As copper, silver, nickel chromium canwelding
to dot or strip, which can be widely applied to the silicon chip
fuses, quick fuse melts melting, electrical wire terminals, lithium
ion, nickel metal hydride, nickel cadmium battery pole piece such
as dot, strip welding.
Specification:
| Frequency | 20 Khz |
| Output Power | 2000 W |
| Voltage | 220 V |
| Switch | Handle or foot switch |
| Power Adjusting | Step or continuous |
| Working Time Control | 24 Hours |
| Weignt | 20-30 KG ( Determined by the size of the horn ) |
| Generator | Digital Generator |
Principle:
By using the ultrasonic high frequeccy vibration principle, the
ultrasonic metal welder converts the ultrasonic vibration energy
into friction energy to transfer the metal’s surface. Under
condition of producing the heat by the friction and putting
apressure to the metal, The metal pieces will fuse.
Application:
1, nickel oxide and nickel battery nickel screen films each melt.
2, lithium batteries, polymer batteries each melt copper and nickel
films, aluminum foil and aluminum melting each other.
3, wires melt each other, forming a partial melt with more than
each other.
4, wires and various electronic components, contacts, connectors,
each melt.
5, various household appliances, automotive supplies, large-scale
cooling block.
6, electromagnetic switches, non-fuse switch high current contact,
dissimilar metal sheets of mutual melting.
7, the metal tube end sealing, cutting can be water, gas-tight.
Main Advantage:
1. Fast Heating: The minimum rate of heating is less than one second(rate of
heating is available for adjustment and control)
2. Wide Coverage of Heating: It can be used to heat various metal parts (replace removable
induction coil as per different shape).
3. Easy Installation: It can be used once it is connected with power source, induction
coil as well as water supply pipe and rising pipe; it is small in
size and light in weight.
4. Easy Operation: You can learn to operate it within several minutes.
5. Fast start-up: It can be started to perform heating operation on condition that
water and power supply is available.
6. Low Power Consumption: As compared with conventional vacuum tube high frequency
equipments, it can save the power by approximately 70%. The smaller
the size of the work pieces, the lower power consumption would be.
7. High Effectiveness: It has such features as uniform heating ( it is applicable to
adjust the spacing of the induction coil to ensure the appropriate
temperature as required by each part of work piece ), fast warming
and limited oxic horizon, and can gurad against any waste after
annealing.
8. Comprehensive Protection: It has such functions as overvoltage, over-current, overheat and
water shortage alarm indications as well as automatic control and
protection.
9. Controllable Temperature: It is applicable to control the temperature for heating work
pieces as per the preset heating time, and thereby control the
heating temperature at a certain technical point.
10. Comprehensive Full Load Design: It can work continuously for 24 hours
11. Small Size And Light Weight: It has a weight of only several dozens of kilograms, of which, the
limited floor space can effectively save the workshop space. Sound
operational environment: it is favorable for environmental
protection, conservation of energy and safety operation, which is
free of any noise, exhaust gas and dust.
12. Elimination of High Voltage: it requires no step-up transformer which may produce approximately
ten thousand voltage, and thus can ensure the maximum safety.
Ultrasonic Metal Welder for Joining Nonferrous Metals with Low
Energy Demand, Generate minimal Component Heat
