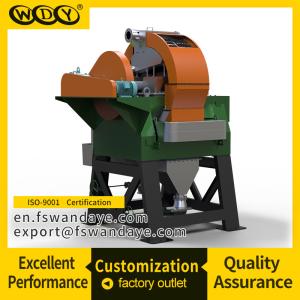

    Magnetic Roller Separator High Gradient Magnetic Separator Working Principle

    High gradient magnetic separation , Magnetic separator working principle

    Product characteristic


    Vertical ring magnetic separator come over the technical problem that the magnetic media of high gradient flat ring magnetic separator is easy to block up.


    The separator possesses many advantages such as high magnetic field intensity, high gradient magnetic field, big concentration ratio, having a wide range in the particle size of feeding ore and the thickness of slurry, intelligent control operation, get a satisfactory mineral processing result when separate the low intensity magnetic ores.


    Technical parameter


    Model

    WD-1250

    WD-1500

    WD-1750

    WD-2000

    Swivel outer diameter(mm)

    1250

    1500

    1750

    2000

    Ore size(mm),

    (-200 mesh %)

    -1.2(30-100)

    -1.2(30-100)

    -1.2(30-100)

    -1.2(30-100)

    Ore density(%)

    10-40

    10-40

    10-40

    10-40

    Ore pulp transit capability(m³/h)

    20-50

    50-100

    75-150

    100-200

    Dry ore throughput(t/h)

    10-18

    20-30

    30-50

    50-80

    Rated background magnetic field(T)

    1.0

    1.0

    1.0

    1.0

    Rated energizing current(A)

    850

    950

    1200

    1200

    Rated energizing voltage(V)

    23

    29

    31

    35

    Rated exciting power(Kw)

    19

    27

    37

    40

    Swivel rotating power(Kw)

    1.5

    3

    4

    5.5

    Rotating pulsation power(Kw)

    2.2

    4

    4

    7.5

    Pulse stroke(mm)

    0-20

    0-30

    0-30

    0-30

    Pulse speed(times/min)

    0-300

    0-300

    0-300

    0-300

    Water consumption(Mpa)

    0.15-0.3

    0.2-0.3

    0.2-0.3

    0.2-0.3

    Water consumption(m³/h)

    30-45

    60-90

    80-120

    100-150

    Cooling water processing(m³/h)

    2.5-3

    3-4

    4-5

    5-6

    Weight of biggest parts(T)

    4

    5

    11

    14

    dimension(length x width x height,mm)

    3200x2340x2700

    3600x2900x3200

    3900x3300x3800

    4200x3550x4200


    Operation process


    1. When mineral processing, firstly, filled the separation cavity with water, open the pulsating equipment, then feeding the raw ore from the feed box.

    2. The magnetic particle in the separation cavity separate from the non-magnetic particle by the different magnetic force, pulsating fluid force and gravity which those particles are acted on.

    3. The magnetic particles are absorbed on the magnetic media, the nonmagnetic particle will discharge from the iron discharge. several minutes later, magnetic cutting, then flushing the magnetic particle from the magnetic media.


    Application scope


    It is used to purify the non-metallic minerals and separate the low intensity magnetic minerals. The non-metallic minerals includes quartz, feldspar, nepheline, fluorite,spodumene,kaolin. The low intensity magnetic minerals includes hematite, wolframite and tantalum-niobium ores.
