Introduction of Rib lath framework

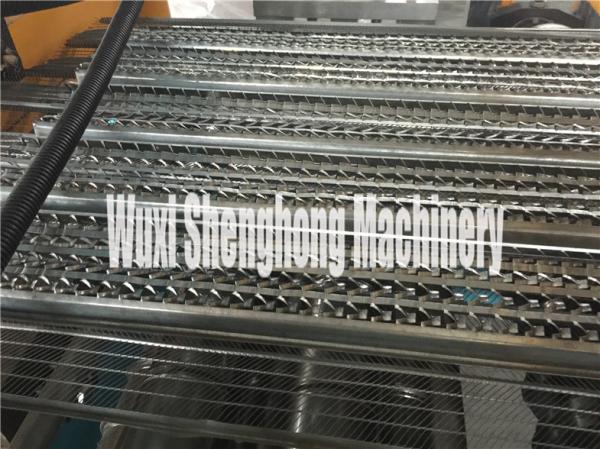

Hi-rib lath (high ribbed lath/High Ribbed Formwork) is manufactured from hot-dipped galvanized steel sheets. has been applied to the concrete structure of projects all over the world. As early as 1969, it has tested and verified by British Cement Association of and many architecture-structure experts in ESPM that it is superior over traditional template including wooden template, steel temlate etc. Because it has better stress stress strength and free shape. It is mostly used as concrete permanent dismantle free template for civil engineering such as tunnel, bridge, raft-style foundation, sewer system, subways, retaining wall, nuclear power station, docks, storing tanks, skysrapers, ocean engineering and irregular or curved shapes.

Features of Rib Lath framework Making Machine

Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. as concrete permanent assembly-free formwork

Introduction of rib lath mesh machine

Angle protecting mesh was shaped through exoabsuib and stretch the two wings the

galvanized steel and stainless steel. Its wings can union with lime mud reliably it can

shape the smooth, straight, simple angle in the buildings. Meanwhile it can prevent the

angle from disruption, hit, destroy, be widely used I construction, decoration, it has the

effect of protection, easy to take shape and beautiful.

Main technical parameters of rib lath mesh machine

1. Inner diameter: 350
2. Outer diameter: 700
3. Material width: 485-500MM
4. Material thickness: 0.45mm galvanized steel
5. Loading weight: 2000kg
6. Servo motor: 1.5KW
7. Working speed: 450—500 strokes/minute or 10—20M/Minute
8. Punching Motor power: 5.5kw
9. Driven way: Chain and gear
10. Rolling passage: 7+2
11. Rolling thickness 0.45mm
12. Forming Motor power 5.5kw
13. Profiling mold: 45 Steel
14. Hydraulic cut: 7MPA 40L Tank
15. Lubricate: Center control
16. Control method: PLC
17. Electric element: Shneider
18. Machine size: 1120 X 600 X 1500 mm
19. Weight: 5300 KG
20. Installation size: 12570 x 2900x1500 mm

Components and Function

Coil Feeding Equipment Consists of one uncoiler with capacity of 3000kgs and its base. The mandrel can expand or shrink. With separate button to make the mandrel roll.

Guiding Equipment Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.

Roll forming system The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers with quenched treatment after being machined by the exact machining tool.

Hydraulic Station Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

PLC Control Panel Main parts imported from Mitsubishi. The operation is easy and steady and can be choose operation by manual or automatically.
