Marine Sacrificial Zinc Anode for Ship , Zinc Hull anode ISO DNV BV
Marine Sacrificial Zinc Anode for Ship
They are manufactured for use on fishing boats, cargo ships,
trawlers and leisure craft.
Specifications:
Elements | ASTM B418-95 US Mill 18001 K | |
| Type I (Seawater) | Type II (soil) |
Al % | 0.1-0.5 | <0.005 % |
Cd % | 0.025 – 0.07 | <0.003 % |
Fe % | <0.005 | <0.004 % |
Pb % | <0.006 | <0.003 % |
Cu % | <0.005 | <0.002 % |
Others Each | <0.02 | <0.02 % |
Other Total | <0.10 | <0.10% |
Zn | Remaining | Balance |
Electrochemical Characteristics |
Capacity | 780 Ahr/Kg | 740 Ahr/Kg |
Close Potential(Ag/AgCl) | -1,1 V | -1,05 V |
Q. What do sacrificial anodes do?
A.
All metals immersed in an electrolyte (sea water for example)
produce an electrical voltage. When two dissimilar metals are in
contact (electrically connected) they produce a galvanic cell (like
a battery), with the less noble metal (a bronze propeller for
example) forming the anode and the more noble metal (stainless
steel shaft) forming the cathode.
Aluminum anode alloy provides more protection and lasts longer than
zinc. It will continue to work in freshwater and is safe for use in
salt water. Aluminum is the only anode that is safe for all
applications.
Q. When we we choose to use Zinc anodes ?
A. Exterior of underground or underwater pipe
Interior of pipe handling corrosive waters and effluents
Lead sheathed electric cable in ducts
Other metal-sheathed electric cable in underwater or underground
locations
Copper concentric neutrals of URD cable
Corrosion control and/or grounding of induced AC on underground
pipe
Annulus space between outer steel casing and inner pipe of deep
wells
Interior bottoms of oil storage tanks
Foamed annulus space of insulated steel pipe underground or
underwater
Double bottom areas of ship ballast tanks
Bottom areas of cargo/ballast tanks of petroleum carriers
Applications:
Zinc Soil Anodes are used where soil conditions require the use of
Zinc Anodes such as saline mud below 120 F (50 C). These anodes
would protect objects underground such a storage tanks, containers,
and buried structures.
Our anodes are used in recreational , commercial and millitary
vessels.
Placed on hulls, propeller shafts, rudders, trimtabs, outboard
engines,stem drives, and in coding system of most inboard engines
to protect metal parts from galvanic corrosion.
Why choose us ?
We are a professional anode supplier over 16 years ,mainly supply:
* Magnesium anodes ( ASTM-G97)
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Al-Zn-In anodes (GAIII)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
Our anodes are shipped worldwide especial main to North America,
Asia etc., around 5000mt per year. Our goods are regularly tested
by independent third party lab in USA to keep anode continuous high
quality. Our plant owns raw material resources ore, so we can
supply very good price with service for you.
We can also accept customized anodes with your logo according to
your drawing !

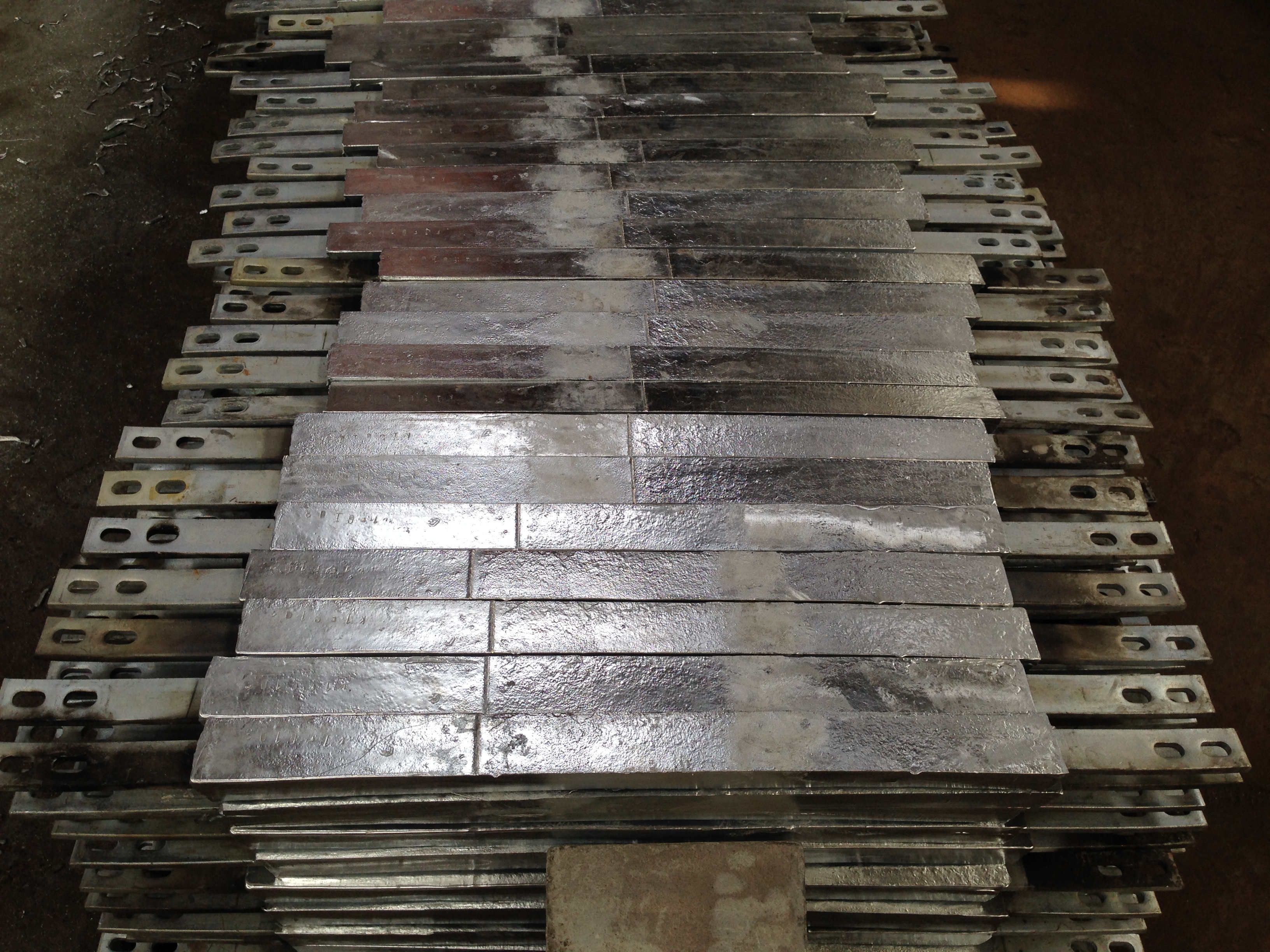

Workshop & Warehouse:
