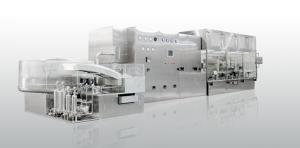

AGF -4 Liquid Bottle Filling Machine Vial Washing Sterilizing And Sealing

AGF -4 Liquid Bottle Filling Machine Vial Washing Sterilizing And Sealing

KHG04 Rotary Filling and Stoppering Machine

The equipment is mainly used for filling and partially stoppering or complete stoppering under aseptic conditions of penicillin bottle in pharmaceutical factory.

The oven mesh belt delivers penicillin bottle that is cooling to buffer arranging bottles plate. Under the protection of the hundred level laminar flow, the bottle will be sorted into a single row and enter the accelerated turntable. Through the equal position of equi-index plate and punch block track filling. Then partially stoppering is uniform and continuous. The bottle of no filling liquid or no bottle stopper will eliminate to waste channel automatically when go by the vacuum chuck.→Qualified product will go to gallery when go by the vacuum chuck.

QCL 60 Vertical Ultrasonic Bottle Washing Machines

The equipment is mainly used for washing of vial bottle in pharmaceutical factory.

The bulk of the bottles get into ultrasonic washing tank through unscramble bottle inclined mesh belt. Separate the bottles one by one through packing auger and sent to lifting starwheel. Then the bottle is transferred to a high level by AISI 304 stainless steel manipulator and clamped. Turn over 180° to make the bottle down and proceed cleaning technique of three water and three gas of inner wall, one water and one gas of outer wall. Finally the dry bottle overturn bottleneck that is upwards and carry out further drying and sterilization by dialing the bottle to oven

SZA 820(2900)Hot Air Circulated Sterilization Tunnel

The equipment is mainly used for drying and sterilization of vial bottle in pharmaceutical factory.

When the bottle is washed, get into the oven uniform and slowly through the transmission network. The bottles were followed by the section of preheating, the high temperature sterilization and the cooling. Wetted fan in the section of preheating will pump the water vapor out of the bottle. High temperature sterilization for bottles about 5 minutes in the environment of 300——320℃. Cooling section is cooling down the bottle after sterilization. Finally it can meet the process requirements and the whole process of drying and sterilization is controlled by real-time monitoring operation.

Service Center All Over world:

Headquarter China: LTPM CHINA

Add:28th,Jiuan Rd,Jiuli Industrial Zone,Shangwang. Ruian city,Zhejiang,CHINA

America:

Exclusive Agent and Service center in USA:

JRH Pharma R&D Services

River Falls, WI,USA

Pakistan:

Multi Link

Add.:Karachi

Raki Trader

Add.: Lahore

Philippines:

Payo Manufacturing

Add: Davao

Colombia:

LTPM Colombia

Add: Bogota

Latino America:

LTPM Dominican Republic

Add: Domican republic

Our company is recognized as a major pharmaceutical equipment manufacturer and a distributor of packaging materials and pharmaceutical chemicals. Our company is founded in Rui'an, China, with 18 years' (Opened on 1996 year) experience in pharmaceutical industry. This allows us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines,packing materials and APIs at competitive prices. Our main products includes:

Fluid Bed Dryer

Counting machine

extract concentration equipment

Emulsification machine

Freeze Dryer

Coating machine

Water treatment equipment

Spray Drying Machine

Powder Mixing Machine

Granulating Machine

Capsule filling machine

Blister Packing Machine

Cartoning machine

Tablet Pressing Machine

Bottling Machinery

Liquid Production Line

Soft Capsule Production Line

Counting production Line

All kinds of lamination films for pharma packaging

Several kinds of APIs

Our Faith: Your Best Pharmaceutical Production Solution!

We offer whole pharmaceutical Production solutions from raw material processing to finished products. We manufacture and distribute different pharmaceutical machinery,packing materials and APIs with our own professional teams and after-sales service teams.

Based on our experienced team, we produce top quality machines, packing materials and APIs and also help customers select the best quality suppliers. Our company is a technology-driven company and focuses on producing high quality machinery. We employ 15 engineers on machinery design and technology improvement. Each engineer has at least ten years' machining and packaging area experience. We are your extra technical consultant center.

Our company provides the following services:

1. we guarantee machine can run for 20+ years.

2. Technician can do on-site commissioning within 7 days.

3. 24 hours online service

4.we provide free spare parts during 5 year warranty

5.we will respond your questions within 9 minute

Quality Control:

Our company owns a quality control department to verify each product at different phases, from the procurement of parts to finished products. In order to offer clients the best quality products, we manufacture products in accordance with international standards, such as FDA, GMP and cGMP. We also could provide IQ/OQ/PQ/FAT/SAT files.

We are your best pharmaceutical production solution!
