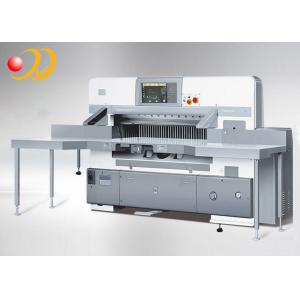

15 Inch Automatic Paper Cutting Machine Computerized Multi -
Language
Specifications :
MODEL | SQZ-115CTN KL | SQZ-137CTN KL | SQZ-155CTN KL | SQZ-176CTN KL |
Cutting width(mm) | 1150 | 1370 | 1550 | 17600 |
Max.cutting height(mm)
(Without auxiliary panel ) | 165 | 165 | 165 | 165 |
Max.cutting length(mm) | 1150 | 1450 | 2000 | 2000 |
Main motor power(kw) | 4 | 5.5 | 7.5 | 7.5 |
Net weight(kg) | 3800 | 4700 | 5800 | 6800 |
Width with sideway(mm) | 2650 | 2870 | 3550 | 3760 |
Without sideway(mm) | 2365 | 2385 | 2825 | 3035 |
Machine lenght | 2465 | 2785 | 2950 | 3600 |
Machine height | 1650 | 1650 | 1730 | 1730 |
Front table length(mm) | 735 | 735 | 750 | 750 |
Table height(mm) | 900 | 900 | 900 | 900 |
Clamp pressure min(dan/bs) | 150 | 150 | 200 | 200 |
Max(dan/bs) | 4500 | 5500 | 6000 | 7000 |
Knife thickness(mm) | 13.75 | 13.75 | 13.75 | 13.75 |
Grinding reserve(mm) | 60 | 60 | 60 | 60 |
Without false clamp(mm) | 25 | 25 | 35 | 35 |
With false clamp(mm) | 95 | 95 | 120 | 120 |
Cutting speed(mm) | 45 | 45 | 45 | 45 |
Voltage(three-phase)(v) | 361-339 | 361-339 | 361-339 | 361-339 |
Packing size(L*W*H)(mm) | 2650*1500*2000 | 2950*1550*2000 | 3700*1600*2300 | 3700*1600*2300 |
Introduction:
SQZ-CTN KL Series paper cutting machine comply with the most
advanced industry standard design and production, equip with
industrial touch screen, multi-language user interface, easy
programming, easy operation. It can achieve multi-machine
communications and remote computer management with remote
diagnostics, and shortcut keys which is easy to understand. Mached
with TAIWAN ABBA high-precision slotless double-rail, the servo
motor has many functions: pushing paper structure, positioning
accuracy 0.01mm, stepless speed regulation, the maximum speed of
24m/min. Equip with automatic knife changing assisyant functions
can achieve knife changing operation. German design of the
double-loop,dual-channel hydraulic system, the whole CE standards.
THE MAIN CONFIGULATION:
turbine | roller ball lead screw | servo motor |
15 inch touch screen computer | double guide rail | Italy hydraulic pump |
THE SYSTEM OF COMPUTER:
1. The displaying panel use 15 inch, you can adjust the color by
yourself.
2. They have the high quality colors(25600), their storage can
reach 170 groups,every group have 250 cut, Its storage time can
reach 300,000 hours.
3. The multi-language operating interface, such as
Chinese,English,Spanish...
4. It has luminous shortcut key so as to ensure the high stability.
THE APPARATUS CONTROLLED SYSTEM:
1. Adopts Switzerland ABB, German MULLER, Japan OMRON.
2. Servo motor is from Japan YASKAWA.
3. Air pump is from TAIWAN HOUBANG.
THE PAPER PUSHER CONTROLLED SYSTEM:
1. Roller ball lead screw: ABBA
2. Double rail guide way: ABBA
THE HYDRAULIC SYSTEM:
1. Adjustable-pressure double-hydraulic system(paper pressing and
cutting both by hydraumatic)
2. combined valve from German, ISO approved hydraulic units.
3. Gear pump from ITALY.
THE SAFETY PROTECTED SYSTEM:
1. Extensible and precise infrared protective device from Shanghai
Zhonghu photocell Control which reaches CE standard.
2. Blade-Replacement Device with safety and convenience.
3. Air cushion and chromeplating platform of photoelectricity
protective device.
4. Underlay cutter frame.
5. The closed paper pusher frame.
6. Machine lock,safety bolting,the safety button and light grid.
7. The driving cutting part uses worm.
