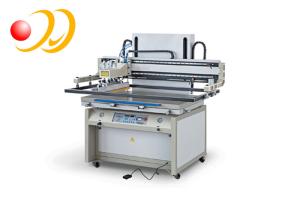

Automatic Screen Printing Press , Screen Print Press Machine

Name: Automatic Screen Printing Press Screen Print Press Machine
Brand: PRINTYOUNG
Price: 1 USD

Ask Lasest Price
Brand Name :	PRINTYOUNG
Model Number :	FB-6040
Certification :	CE
Price :	negotiation
Payment Terms :	T/T or western Union
Supply Ability :	30 sets per month
Delivery Time :	30 working days after received your payment

Add to Cart

Product Details
Company Profile

Automatic Screen Printing Press , Screen Print Press Machine

Automatic Screen Printing Press , Screen Print Press Machine

Specifications :

Model	FB-6040	FB-7050	FB-9060
Max. printing size	600*400mm	700*500mm	900*600mm
Min. screen frame size	400*400mm	500*500mm	600*600mm
Max. screen frame size	950*600mm	1000*700mm	1200*800mm
Printing table size	700*500mm	900*600mm	1100*700mm
Printing thickness	0-40mm	0-40mm	0-40mm
Height of instant off-screen	0-20mm	0-20mm	0-20mm
Max. printing speed	1000t/h	1000t/h	900t/h
Weight	550Kg	600Kg	750Kg
Overall dimension	12509801620mm	135010201620mm	162011901680mm
Printing motor	0.2Kw	0.2Kw	0.2Kw
Lifting motor	1.5Kw	1.5Kw	1.5Kw
Fans	0.75Kw	0.75Kw	1.1Kw
Power	3P4N 50Hz 380V 2.45Kw	3P4N 50Hz 380V 2.45Kw	3P4N 50Hz 380V 2.8Kw

Model	FB-12060	FB-12070	FB-12080
Max. printing size	1200*600mm	1200*700mm	1200*800mm
Min. screen frame size	600*600mm	600*600mm	600*600mm
Max. screen frame size	1500*800mm	1500*900mm	1500*1000mm
Printing table size	1300*700mm	1300*800mm	1400*900mm
Printing thickness	0-40mm	0-40mm	0-40mm
Height of instant off-screen	0-20mm	0-30mm	0-30mm
Max. printing speed	900t/h	800t/h	800t/h
Weight	800Kg	900Kg	950Kg
Overall dimension	183011901680mm	183012401680mm	183013901680mm
Printing motor	0.2Kw	0.2Kw	0.4Kw
Lifting motor	1.5Kw	1.5Kw	2.0Kw
Fans	1.5Kw	1.5Kw	1.5Kw
Power	3P4N 50Hz 380V 3.2Kw	3P4N 50Hz 380V 3.2Kw	3P4N 50Hz 380V 3.9Kw

Introduction:

1. Four cylinders motorized to achieve even pressure with clear mesh
2. High-precision guide track with "MEGADYNE" belt, dual-band drive, high printing precision
3. Decelerator driving printer head moves up and down, speedy and stable
4. Microcomputer with fault display function for maintenance
