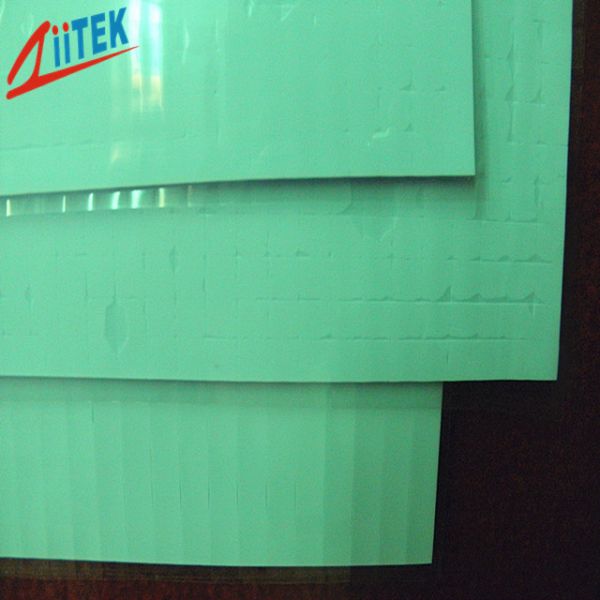

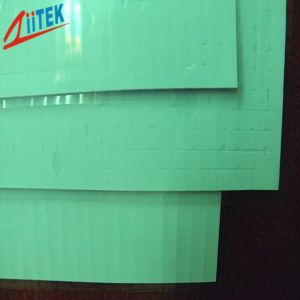

Green 2.0 W/mK Thermal Gap Filler TIF180-20-07E 2.032 mm Silicone
rubber sheet in 35shore00 hardness
The TIF180-20-07E is a high performance and compatible non-silicone material of the
thermal conductive interface materials. Their flexibility and
elasticity make them suited to the coating of the very uneven
surfaces. Heat can transmit to the metal housing or dissipation
plate from the separate elements or even the entire PCB, which in
effect enhances the efficiency and life-time of the heat-generating
electronic components.. This product has low hardness is
conformable and is electrically isolating. The low modulus
characteristic of the product offers optimal thermal performance
with the ease of handling.
Features:
> Good thermal conductive: 2.0 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
>Broad range of hardnesses available
>Easy release construction
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Handheld portable electronics
> Automotive engine control units
>mainboard/mother board
Typical Properties of TIF180-20-07E Series |
Color | Light green | Visual | Composite Thickness | hermalImpedance
@10psi
(℃-in²/W) |
Construction &
Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.55 |
| 20mils / 0.508 mm | 0.82 |
Specific Gravity | 2.10 g/cc | ASTM D297 | 30mils / 0.762 mm | 1.01 |
40mils / 1.016 mm | 1.11 |
Heat Capacity | 1 l/g-K | ASTM C351 | 50mils / 1.270 mm | 1.27 |
60mils / 1.524 mm | 1.45 |
Hardness | 27/35/45/60
(Shore 00) | ASTM 2240 | 70mils / 1.778 mm | 1.61 |
80mils / 2.032 mm | 1.77 |
| Tensile Strength | 40 psi | ASTM D412 | 90mils / 2.286 mm | 1.91 |
100mils / 2.540 mm | 2.05 |
Continuos Use Temp | -50 to 200℃ | *** | 110mils / 2.794 mm | 2.16 |
120mils / 3.048 mm | 2.29 |
Dielectric Breakdown Voltage | >1500～>5500 VAC | ASTM D149 | 130mils / 3.302mm | 2.44 |
140mils / 3.556 mm | 2.56 |
Dielectric Constant | 5.5 MHz | ASTM D150 | 150mils / 3.810 mm | 2.67 |
160mils / 4.064 mm | 2.77 |
Volume Resistivity | 4.0X10"
Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 2.89 |
180mils / 4.572 mm | 2.98 |
Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 3.05 |
200mils / 5.080 mm | 3.14 |
Thermal conductivity | 2.0W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm)
0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm)
0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm)
0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Pressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
Advantage
Ziitek has independent R&D team. This team is experience,
rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek
thermal conductive materials. With well-equipped testing equipment,
we Ziitek can also do some tests with customers' samples, so we can
find a more suitable Ziitek materials for every customer.
Q&A
Q: What is your terms of payment ?
A: Payment<=2000USD, T/T in advance. Paying in time and faithful
for several months, we can apply other payment term for you, pay
together in every month or 30 days.
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D,
manufacture and sales of the thermal interface materials (TIMs). We
have rich experiences in this field which can support you the
latest, most effective and one -step thermal management solutions.
We have many advanced production equipments,full test equipments
and fully automatic coating production lines which can support the
production for high performance thermal silicone pad, thermal graphite sheet/
film, thermal double-sided tape, thermal insulation pad, thermal
ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
