AWS A5.17 EM12 Welding Material Submerged Arc Welding For Boiler LPG Cylinders

Name: AWS A517 EM12 Welding Material Submerged Arc Welding For Boiler LPG Cylinders
Brand: Zhiyou
Price: 1 USD

Ask Lasest Price
Brand Name :	Zhiyou
Model Number :	AWS A5.17 EM12
Certification :	CE,BV,ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	5000Tons/Month
Delivery Time :	20 days for one 20' container

Add to Cart

Product Details
Company Profile

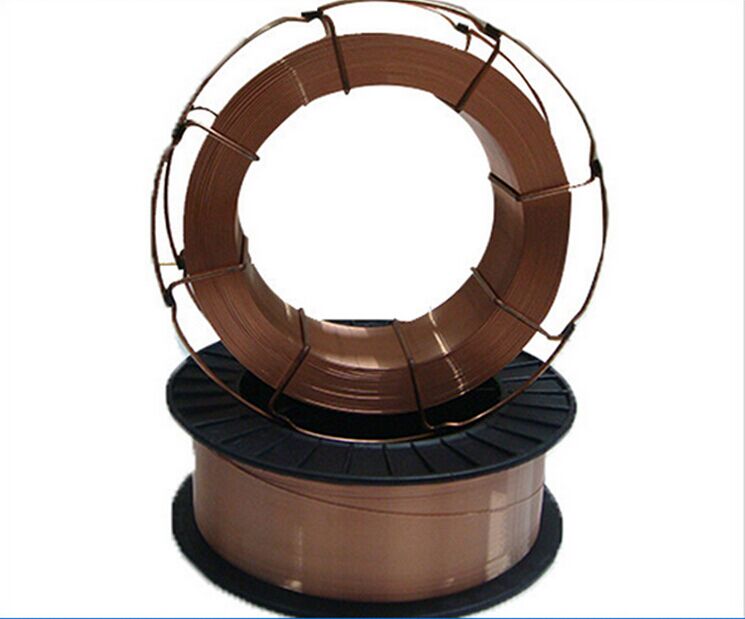

AWS A5.17 EM12 Welding Material Submerged Arc Welding For Boiler LPG Cylinders

AWS A5.17 EM12 Soild Wire For Submerged Arc Welding For Boiler,LPG Cylinders

Application:

Suitable for welding made by 450MPa-500MPa tensile strength steels,such as boiler,bridges,pressure vessels as well as LPG cylinder and so on.

Specifications:

Introduction of EM12 Electrode Wire
Brand Name	ZHIYOU
Product Name	Welding Electrodes
Model No.	AWS E6010
Diameter	0.6mm to 5.0mm or as your request
Length	can be as long as your request
Operating Current	AC, DC
Welding Po	30~50, 80~100, 110~130, 150~200
Type of Coating	Cellulose Type
Color	Gray, green, white, red
Application	suitable for welding made by 450MPa-500MPa tensile strength steels,such as boiler,bridges,pressure vessels as well as LPG cylinder and so on.
Feature	Stable arc, fewer spatters, easy to restrike, less smog, good off slag
Superiorities	1. Manufacturer Direct Supplier with our own brand Zhiyou
	2. Standard quality and competitive price
	3. Powerful supply ability
	4.Oversea after-sale service
	5. Professional R&D personnels and an experienced Management team
Certificate	ICE, BV
OEM	Acceptable
Sample	Available
Main Market	Southeast Asia, Africa,Mid East,South America
Packaging Detail	20kg or 25kg per spool with one carton,then put on the wooden pallets
	Inuer box is a shrink- wrapped cardboard box, we can do it on pallet
	as clients’ required, 1MT/pallet or 2.5MT/pallet. Also we can do OEM
	package as per your request.
Payment Terms	30% T/T as deposit, 70% before shipment/ against copy B/L.
Delivery Time	Within 20 working days upon receive the deposit

Details for AWS A5.17 EM12	ZHIYOU MARINE
	www.marineoutfittings.com

Chemical Composition of Deposited Metal(%)
	C	Mn	Si	S	P	Ni	Cr	Mo	Cu
Standard	0.06-0.15	0.8-1.25	≤0.10	≤0.03	≤0.03	﹣	﹣	﹣	≤0.35
Typical	0.066	0.88	0.022	0.013	0.01	0.02	0.021	﹣	0.075
Mechanical Properties of Deposited Metal (AW)
	Yield Point Reh(MPa)		Tensile Strength Rm (MPa)		Elongation A4 (%)		Impact Value ( J )
							﹣40℃
Standard	≥360		≥470		≥29		≥110
Typical	370		480		30		120

Features of AWS A5.17 EM12	ZHIYOU MARINE
	www.marineoutfittings.com

1. Certificate: CE,

2. Package: 1kg/spool or 5kgs/spool or 15kgs/spool

3. packaging can be changed according to your needs.

4. Sample: free

Package & Delivery& Payment terms	ZHIYOU MARINE
	www.marineoutfittings.com

Payment : By T/T(30% deposit T/T in advance, balance 70% cleared out before delivery) or
Irrevocable L/C at sight

Incoterm: EXW/FCA/FOB, C&F/CIF

Package: Pallet with film packing or according to customer's requirement

Lead time : Within one month for one 20'GP

Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk

Our Service	ZHIYOU MARINE
	www.marineoutfittings.com

Zhiyou has been doing OEM job for many reputable companies for many years, which makes the best

guaranty for Zhiyou technical advantages with precise design. Zhiyou Marine& Offshore is designed

according to ABS CCS BV LR DNV NK KR etc standard.In line with the responsibility spirit for customers,

we try to satisfy the standards and the customers’ requirement in the process of designing and

manufacturing process, as well as fully consider the basic cost. The products we providing will guarantee

the quality and reasonable price, which ensure our cooperated customers can get the maximum value

and minimum cost.

1) Punctual delivery:
• We put your order into our tight production schedule, keep our client informed about production

process, ensure your punctual delivery time.
• Shipping notice/ insurance to you as soon as your order is shipped.

2) Services after sales:
• An reasonable solution and/or response to any inquiry shall be provided within 24hrs upon receipt of it.
• Terms and conditions of warranty shall be strictly abide by.
• Maintenance service shall be provided accordingly

3) Professional design and efficient solution:
• Our experienced engineers and experts guaranteed our customer with satisfactory design & solution
• Rich experiences in various bids assistance including documentary support
• Efficient solution providing through our professional designer and technical supporter

Quality Guarantee	ZHIYOU MARINE
	www.marineoutfittings.com

Product Range: All marine outfittings, equipments and facilities etc

Product Design: With strong engineer team, for all marine products, we support design, manufacture,

install etc, according to your requirements. All products strictly conform to your confirmation.

Product Process: Most of products are finished in our own manufacture bases, thus quality and delivery

time could safely guaranteed and also avoid indirect troubles

Product Inspection: Double inspection make sure quality guaranteed completely.

Our Related Products	ZHIYOU MARINE
	www.marineoutfittings.com

OUR PRODUCT RANGE

1	Marine door	Watertight	Fireproof	Quick action	Weather tight	Airtight&Sound-reduction	Hydraulic Watertight	Hollow Cabin Door
2	Marine windows	Fixed	Skylight	Porthole	Sliding	Watertight	Fireproof	Louver& Cabin Shutters
3	Hatch cover& man hole	Sliding	Watertight Manhole Cover	Bolted watertight	Suez Canal Light	Quick action	Type A B C D	Rotating Oil tight
4	Mooring component	Marine bollards	Fairlead	Mooring roller	Mooring chock
5	Marine steel product	Seamless steel Pipe	Seam steel pipe	Marine crane	Marine Stern Roller	Marine fender rubber cylinder	Steel structure	API pipe
6	Marine propeller& shaft	Rudder System	propeller	Rudder shaft sealing component	Rudder blade	Rudder carrier bearing	Rudder stock/pintle sealing apparatus	Fin stabilizer
7	Marine deck equipment	Mooring winch	Crane	Windlass	Capstan	Rope Guider	Cable lifter
8	Rubber elements	Rubber fenders	Pneumatic fender	Ship launching airbag	Rubber sealing strip	Quay fenders	Drain airbag
9	Pressure vessel tank	Anti- Corrosion pressure	Fermentation tank	Low temperature pressure	Compressor air tank	Oil& LPG tank	Vacuum tank	Foam buffer tank
10	Marine boarding ladder& gangplank	Boarding ladder	Draft ladder	Lifesaving ladder	Vertical access ladders	Embarkation ladder	Accommodation ladder	Gangplank
11	Welding material	E 6013	E 7018	E 7024	E 7018-1	E 308L-16	E 347L-16	E 309L-16
12	Metal Processing Machinery Parts	Machinery Parts or fittings can be designed as your drawings or detailed requirements, and processed by lathes, milling machines, planing machines, drills.

NOTES:
1. The content of this table doesn't cover all catagories, providing that the item you are looking for is not included hereof, please feel free to contact us.
2. All the products shall be customerized accordingly, OEM&ODM available.

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Shanghai Zhiyou Marine & Offshore Equipment Co.,Ltd.
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

AWS A5.17 EM12 Welding Material Submerged Arc Welding For Boiler LPG Cylinders

AWS A5.17 EM12 Welding Material Submerged Arc Welding For Boiler LPG Cylinders

AWS A5.17 EM12 Welding Material Submerged Arc Welding For Boiler LPG Cylinders

AWS A5.17 EM12 Soild Wire For Submerged Arc Welding For Boiler,LPG Cylinders

Application:

Specifications:

welding electrode wire

welding electrode material

AWS A5.17 EM12 Welding Material Submerged Arc Welding For Boiler LPG Cylinders

You May Like

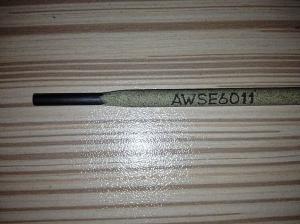

AWS E6013 E6010 E6011 E7018 2.5mm 4.0mm Welding Material Steel Use

TIG Stainless Steel Welding Material Welding Wire Welding Flux Cored Wire ER 309L

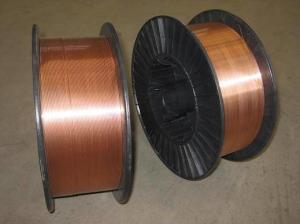

Mig Welding Material Stainless Steel Welding Wires ER70S - 6 Welding Consumables
