1.8m Digital Sublimation Flag Printing Machine With Two DX7 Head
Specification:

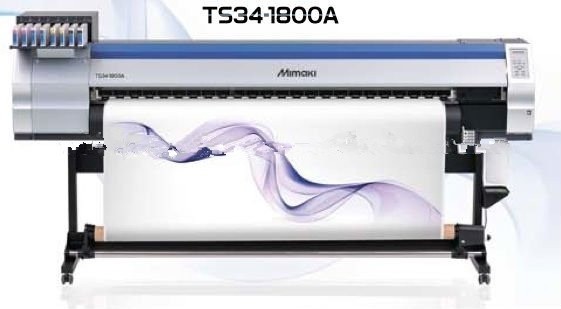

Model | MSR1800(Include Mimaki TS34-1800A Printer and SR1800 Heater) |
Print head | Piezo technology,Epson DX7 printer head |
Ink | Sublimation ink |
Color mode | Dual KCMY |
Nozzles | 1440nozzlesx2head |
Print head higher | 2/3mm,3/4mm,4/5mm(Optional) |
Max materials width | 1900mm |
Max printing width | 1800mm |
Printing resolution and speed | Resolution(dpi) | speed |
360x360(1pass) | 91m2/h |
540x720(4pass) | 32m2/h |
540x1080(6pass) | 22.2m2/h |
720x1440(8pass) | 13.5m2/h |
Media | Size | 210mm~1910mm |
Thickness | 1.0mm |
Roll inside diameter | 2 Inch/3 Inch |
Roll owter diameter | 180mm |
Maximum weight for roll material | 25Kg |
Rip Software | RasterLinkPro 5 |
Interface | USB2.0 |
Printer power | AC100-120V/AC220-240V(Adaptive).50/60Hz±1Hz |
Sublimation machine | AC220-240V.16A.50/60Hz±1Hz |
Power consumtion | Direct dye sublimation heater 3800W |
Printer 3600W |
Environment | Temperature:20-35°C,Humidity:35-65% |
Weight | 600KG |
Description:
· Far Infrared Blackbody Tube Radiation
1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable
6· Quick Tail Gas Treatment
7· Convenient to Maintain
7· Easy to Set up and Operate
9. Easy to load the media in and out oven during your machine
working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop
, it’s easy for you loading the roll materials.
12. Easy to change the active carbon from the filter
13. Adopting the most advanced thermal energy technology low power
consumption, saves electricity and conserve energy costs.
Advantages:
1. Suitable for small lot, Personality, Diversity Printing, Without
Limit Of Quantity.
2. The printed image color is bright and vivid with nice color
gamut.
3. Rapid speed and various printer to choose
4. It is simple and leave out heat transfer process, one person can
operates with high efficient and short time.
5. Low cost and no need of any kind transfer paper, liner breaking
the highest costs performance
Applications:
Textile,flag,poster,banner, tablecloth,wall pictures,interior
decoration, indoor and outdoor printing etc.
Printing Samples:
Machine Details:
+
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manual, and the professional technical
staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and
replacement by international courier
