Single-Column Drop Impact Tester
1. Product Model:GX-6050-A
2. Product Description:
This tester covers procedures for the drop testing of loaded boxes,
cylindrical containers, and bags and sacks by the free-fall method.
The tester method is intended for use in evaluating the capacity of
a container to withstand the sudden shock resulting from a free
fall, or to evaluate the capacity of a container and its inner
packing to protect its contents during the sudden shock resulting
from a free fall. This tester may also be used to compare the
performance of different package designs. This tester may also
permit observation of the progressive failure of a container and
the damage to its contents.
3. Product Features:
① Brake motor to drive the drop arm and digital display height gage
make the height accurate and intuitive. The operation is simple and
drop is stable and accurate.
② The equipment works steadily and can achieve drop from edge,
angle and surface.
③ The machine adopts single arm double column structure with
electric reset, electric control drop and electric lifting device
which make it easy to use. The unique hydraulic buffer device
greatly improves the machine service life and stability with
security.
④ Single arm can conveniently place products. The angle error
between the drop impact surface and bottom plane is less than or
equal to 1°.
4. Test Standards:GB/T4857,5-92,ISO0244 8-1972E,ASTM-5276 ,JISZ0202-87
5. Techinical Parameter:
Drop Height(mm) | 300~1500 ( 2000 also accepted ) |
Sample Maximum Weight(Kg) | 100 |
Sample Maximum Size(mm) | 1000×800×1000 |
Impact Panel Size(mm) | 1700×1200×20 |
Motor Wattage(KWA) | 0.37 |
Volume(MM) | 1700×1200×2300 |
Drop Error | ±10 |
Fell Flat Error | ≤1° |
Net Weight(Kg) | About 700 |
Drive | Single wing electromagnetic |
Power | AC380V 50HZ |

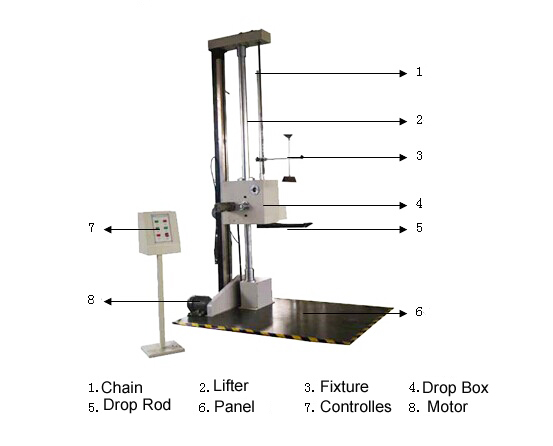

6. Structure:
7．Testing steps:
① Connect to power:AC380V, 50HZ.
② Open the power switch, the power indicator would light and the
equipment is on standby
③ Set the height required. Press “I△”and set the height.
④ Put the sample on the equipment and prepare the fixture.
⑤ Testing method: Press the up button to the set height, and then
press the drop button to start the free-fall test. Attention that
the operator should not be near the testing area.
⑥ Press the zero button first, then press the reset or fall button
to start the next test.
8. Maintenance:
① Lay down the drop arm after the test in case of the
transformation of the spring. Before each test, press reset first
to stop the motor before pressing the drop button.
② Add appropriate low concentration oil in the sliding round rod
after the installation of a new machine. It is strictly prohibited
to add rust-proof oil or high oil and backlog with corrosive oil.
③ Clean up and add oil again if there is too much dust on the
sliding round rod.
④ The drop impact tester belongs to impact mechanical equipment, so
the screws need check to avoid failure after 500 times test.
9. Product Picture:
