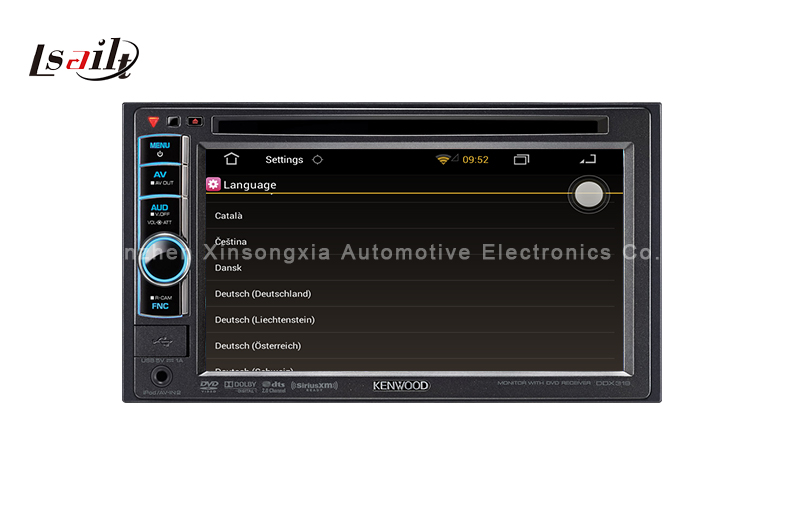

HD Kenwood Android navigation Box Support TMC and Voice Navigation
Bluetooth
For models:
DDX-
5036/630BT/4038/4028/7036/8036/7025BT/5025DAB/5025BT/4025/3025/4055/3055/
etc. all
machine with NAVI interface .(800X480)KENWOOD
1. Vehicle: car, bus, truck
2. Brands: Toyota, Honda, Nissan, GM, Buick, Kia, HYUNDAI etc
3. Super auto supplies supermarket,car audio modification
store,automobile service factory
4. Applied to the car DVD host:PIONEER/KENWOOD//JVC/ALPINE/ etc.
1． Easy installation. Nondestructive installation；
2． Random installation ,without secondary installation；
3． Simple functions, strong stability, which more useful,
4． Convenient to upgrade map.
1. Adopt high performance Mstar Cortex A9 dual-core car regular
processorMST786,main frequency is 1.2GHZ;
2．With high capacity memory for DDR3 1GB,built-in 8GB capacity for
you to store your file；
3．OS:Android4.2.2；
4．Support many kinds of resolutions,default 800*480；
5．Support TMC(Traffic Message Channel)；
6. Support many kinds of navigation software.Support 3D live
navigation.With Navigation voice mixing
function；
7．Support touch screen operation；
8．Support upgrade OS by TF card and U Flash Disk ；
9．Support hardware reset factory Settings；
10．Support connect by wireless WIFI and 3G function. Meet your
needs in different environment；
11．Support external TF/SD card,the highest support 32G；
12．Support USB 2.0 external U Flash Disk. Support external Hard
Disk;
13. Support many kinds of video formats(1080P):AVI(H.264, DIVX,
DIVX, XVID, rm, rmvb, MKV(H.264,
DIVX, DIVX, XVID), WMV, MOV, MP4(H.264, MPEG, DIVX, XVID), MPEG,
MPG, FLV(H.263,H.264)；
14. Supports many audio formats
:WAVE,AIFF,AU,MP3,MIDI,WMA,RealAudio,VQF,OggVorbis,AAC,APE；
15. Design EQ sound choice function, achieve high quality music
effect.
Product accessories |
|
Mainframe | 1(standard configuration) |
Dedicated wire | 1(standard configuration) |
Antenna | 1(standard configuration) |
WIFI Antenna | 1(standard configuration) |
USB cable | 1(standard configuration) |
Specification | 1(standard configuration) |
certification | 1(standard configuration) |
Warranty card | 1(standard configuration) |
Microphone | 1(standard configuration) |
SPK | 1(optional configuration) |
Map card | 1(optional configuration) |
Mute dedicated line | 1(optional configuration) |
Specifications
|
CPU | 1.2G~1.6G Hz |
Model | Cortex A9 dual-core processor. car rule MST786 |
RAM | DDR3 1GB |
Flash | Inand standard equipped,8GB, |
Navigation storage | TF card |
OS | Android 4.2/4.4 |
HVGA | 800X480 |
WIFI | Came the the OS |
Operating Voltage | DC(9-15)V |
Operating current | Normal 400 mA@12V |
Operating temperature | -20°C—+70°C |
Storage temperature | -30°C—+80°C |
Audio output | Left and right channels, stereo, distribute the signal and analog
output |
USB function |
USB interface | Two-way interface, can external connect a stern line of USB HUB,
USB. |
Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA)) |
Maximum:32GB,support FAT/NTFS hard disk,U flash disk ; compatible
USB 1.0,USB2.0 |
Audio file format | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA, RA,MKA,M3U |
Functions of audio media | Select songs from list, play, pause, the last song, the next song,
shuffle play, repeat playback, 3 d effects ID3 display information of songs |
Format of Video file | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM ,MKV, DIVX, AVI,ASF,WMV,FLV,TS,WEBM. |
Functions of video media | Select video from list. Play, pause, the last one, the next
one(Don’t support background) |
Format of picture file | JPEG,JPG,GIF,PNG,BMP,WBMP |
Functions of picture media | Select pictures from list. Play, pause, the last picture, the next
picture, Rotating pictures, set as wallpaper. |
EQ | Audio Setting | More EQ simulation control | balancing control | Acoustic control | Spectrum collection and variety shows |
Internet |
WIFI | After good Wi-Fi connection, select the current can be connected
Wi-Fi hotspots, enter the password to connect to the Internet after the Internet Via your 3G/4G mobile phone can also be used as hot provide
navigation hosts (this set with reference to your mobile phone manual) |
3G | 3G/WCDMA/CDMA2000/TD-SCDMA standard |
Support surf the Internet through 3G USB dongle or 3G mobile share
next work |
MAP (GPS Navigation) |
Supportable navigation software | Beauty line, DaoDaoTong, LingTu, hypergraph, navione, AutoNavi,
baidu, Google ,IGO,SYGIC |
Map upgrading | Through TF card |
Support 3D live navigation.(Need navigation software to support) |
Support navigation sound mixing/sound sent back |
Support real-time traffic(Need navigation software to support,
internet) |
Support multiple navigation software |
|
File manager |
Functions | Support to copy, move files between different storage medium and
different folders |
Support to delete files |
|
Functions | Support the task list of activities |
Support to switch the activities task |
Support to close the activities task |
System with Google | The browser, calculator, calendar and send E-mail,Google store |
Software upgrading | TF or U flash disk |
Voice Recognition | Support |
System language | Multi language |
