    50 mm CNC Wire Spring Coiling Machine Consisting Of Wire Feeding Axis And Cam Axis

    Ask Lasest Price
    Brand Name : XD
    Model Number : 230
    Certification : CE / ISO9001
    Payment Terms : TT LC
    Supply Ability : 20 sets per month
    Delivery Time : 15 days
    Price : Negotiable
    • Product Details
    • Company Profile

    50 mm CNC Wire Spring Coiling Machine Consisting Of Wire Feeding Axis And Cam Axis

    XD-230 two axis CNC spring coiling machine for compression spring 250pcs/min


    XD-230 two axis spring coiling machine for spring coils.


    Details:

    1. XD-230 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and

    cam axis. The spring machine’s two axes can act independently of synchronously by build the program.
    2. 5.7" control panel ,easy to operate,
    3. Cam can be moved clockwise or anti –clockwise:wire feed length can be changed whise running the machine,
    4. Computer can automatically detect the temperature of the motor and slow down the running speed

    to protect the motor from overheating,
    5. Computer can automatically decelerate according to the timing when the probe should be used,
    6. Prodution speed can be increased or decreased at any ting running the machine,
    7. Not only does have the convenient mechanization,but also the high speed and accuracy resulted

    from servo motion system.


    Technical Parameter:

    Model:

    XD-230

    Wire diameter:

    φ1.0~3.0mm

    Axes:

    2-3 axes

    Maximum Outside Diameter:

    50 mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    250pcs/min

    Feed Speed

    1350m/min

    Memory Number:

    1000PCS

    Wire Feed Servo Motor:

    3.8 KW

    Cam Servo Motor:

    2.7 KW

    Power AC:

    3-Phase 220V

    Dimensions (L*D*H):

    1200X1200X1700MM

    Wooden Case Dimensions

    1300x1300x1850mm

    Machine Weight:

    1000Kg

    Gross Weights

    1050Kg


    Sample spring:

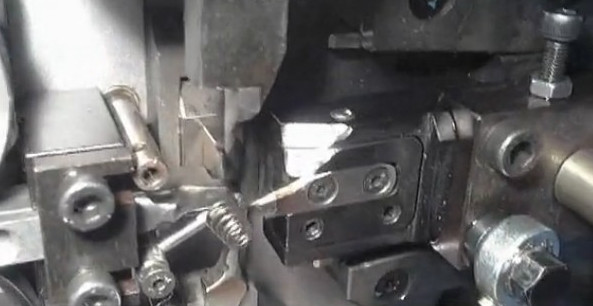

    Machine partial view:
