Standalone Rfid Access Control Reader With Touch Keypad For One Door Access Control

    Buy cheap Standalone Rfid Access Control Reader With Touch Keypad For One Door Access Control from wholesalers

    Buy cheap Standalone Rfid Access Control Reader With Touch Keypad For One Door Access Control from wholesalers
    • Buy cheap Standalone Rfid Access Control Reader With Touch Keypad For One Door Access Control from wholesalers

    Standalone Rfid Access Control Reader With Touch Keypad For One Door Access Control

    Ask Lasest Price
    Brand Name : Granding
    Model Number : U6T
    Certification : CE/FCC
    Payment Terms : T/T in advance
    Supply Ability : 5,000pcs per week
    Delivery Time : 2 working days after received your payment
    • Product Details
    • Company Profile

    Standalone Rfid Access Control Reader With Touch Keypad For One Door Access Control

    Standalone Rfid Access Control Reader With Touch Keypad For One Door Access Control


    Features:


    1.One Relay output
    2. User Capacity:2000 Card+2000PIN
    3. With wiegand26 input/output interface
    4. Touch Button Keypad for 1-door access control system
    5. Reading Distance:3~10cm
    6. Built in EM Card Reader, MF card reader (optional)

    7. Working Voltage:9VDC-24VDC

    8. Support three kinds of opening door mode: Card, Card+ PIN, PIN

    9. Working Current: less than 100mA


    Specifications


    Operating

    Active Current

    12-24VDC

    <80Ma

    Operate Humidity

    Wiring Connections

    20%~80%RH

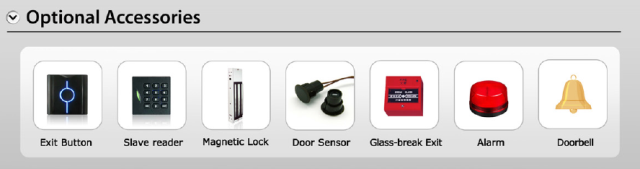

    Electric Lock, Exit Button, Alarm, Bell, Door sensor

    User Capacity

    Idle Current

    2000

    <40Ma

    Door Relay Time

    Dimensions

    0~99 seconds

    120(L)*80(W)*23(H)mm

    Card Type

    Lock Output load

    EM or

    Max2A

    Alarm Time

    Net Weight

    0~3 minutes

    130g

    Reading Distance

    Alarm Output load

    3~6cm

    Max1A

    Wiegand26 interface

    Gross Weight

    Input& Output

    700g

    Operate Temperature

    -10℃~60℃
