Simulation Transportation ISTA Packaging Testing With LCD Display Controller

    Buy cheap Simulation Transportation ISTA Packaging Testing With LCD Display Controller from wholesalers

    Buy cheap Simulation Transportation ISTA Packaging Testing With LCD Display Controller from wholesalers
    • Buy cheap Simulation Transportation ISTA Packaging Testing With LCD Display Controller from wholesalers
    • Buy cheap Simulation Transportation ISTA Packaging Testing With LCD Display Controller from wholesalers
    • Buy cheap Simulation Transportation ISTA Packaging Testing With LCD Display Controller from wholesalers
    • Buy cheap Simulation Transportation ISTA Packaging Testing With LCD Display Controller from wholesalers

    Simulation Transportation ISTA Packaging Testing With LCD Display Controller

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-A520
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 100 Piece / Pieces Per Month
    Delivery Time : 15 Days After Order
    • Product Details
    • Company Profile

    Simulation Transportation ISTA Packaging Testing With LCD Display Controller

    Simulation Transportation ISTA Packaging Testing With LCD Display Controller


    Products Introduction:

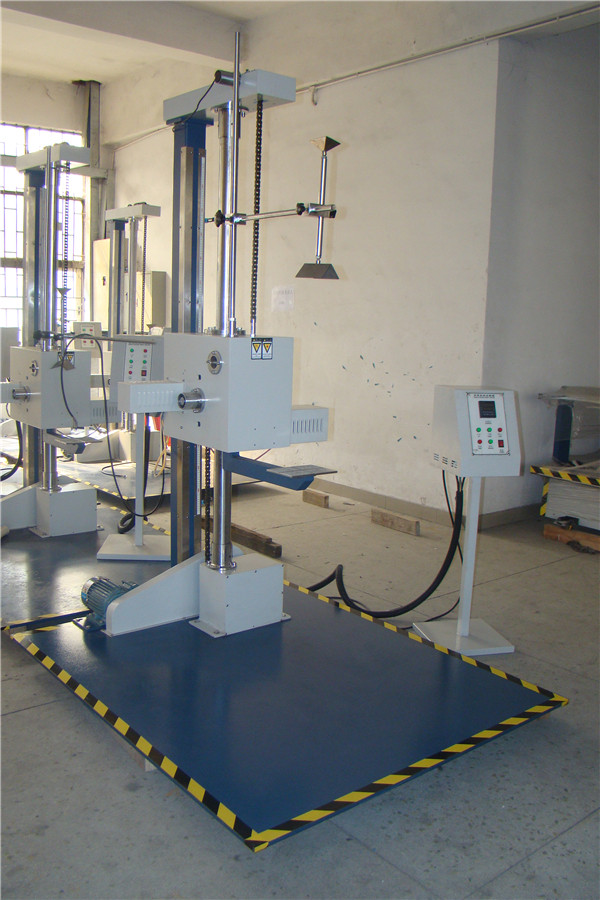

    LCD Display Controller Simulation Transportation ISTA Packaging Free Drop Testing Machine is used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.


    Main Parameters:


    Dropping height300mm-1500mm( can be adjustable)
    Display method:digital display
    Maximum weight of the package60kg
    Maximum size of the package(L×W×H) 1000×700×1000mm
    Size of the dropping panel(L×W)1700×1400mm
    Size of the swing200×150×8mm
    Dropping deviation±10mm
    Deviation of dropping horizonless than 1°
    Outside size: (L×W×H)1700×1200×2500mm
    Chamber size: (L×W×H)350×350×1100mm
    Weight550kg
    PowerAC single phase, 220V
    Test standardsGB/T4857.5, ISO 2248,JIS Z0202,ASTM D5276
    Accessorieselectric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece

    Operation of Control:


    A. LCD Display Controller ISTA Packaging Free Drop Testing Machine adopts electromagnet control system to control the dropping swing.

    B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function

    C. The testing height can be digital set up.


    The Comparison Table of The Package Weight And Dropping Height:


    WeightHeight
    No less thanLess thanFree-drop
    LbsKgLbsKgInchmm
    00211030760
    2110411924610
    4119612818460
    61281004512310
    10045150688200

    Configuration:


    1, Outside material: advanced paint coat

    2, Display: LCD display

    3, Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)

    4, Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control

    5, Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs


    Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
