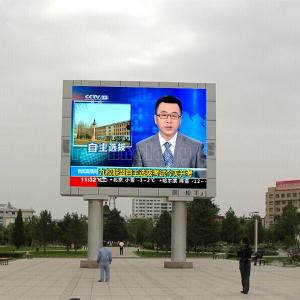

LED Display Outdoor P10 DIP Full Color LED Board,P10 DIP RGB LED
Display Module 320mm*160mm,brightness 8000nits,DIP 346
Arise Technology Co., Ltd
Web:http://www.ariseled.com
QQ:1327078259 Skype:ariseled
http://i.youku.com/ariseled
Outdoor LED Display DIP Series:
P10 DIP 1R1G1B Outdoor LED Display
P12 DI1R1G1B Outdoor LED Display
P16 DIP 1R1G1B Outdoor LED Display
P16 DIP 2R1G1B Outdoor LED Display
P20 DIP 1R1G1B Outdoor LED Display
P20 DIP 2R1G1B Outdoor LED Display
P25 DIP 2R1G1B Outdoor LED Display
P6 DIP 3in1 RGB module 192mm x 96mm
P8 DIP 3in1 RGB module 256mm x 128mm
P10 DIP 3in1 RGB module 320mm x 160mm
P13.3 DIP 3in1 RGB module 320mm x 160mm
Features :
Color uniformity, high contrast, consistency, and the screen is
gorgeous natural
Low-power, low-calorie, low-noise, energy-saving and environmental
protection
Ultra-wide viewing angle design, wide viewing angle, large range of
audiences
With integrated cabinet design, engineering, installation is
simple, easy commissioning and maintenance
UV, anti-deformation module kit, good flatness, guarantee the best
display screen body
Dual channel thermal design, low attenuation, long life
Professional mask design, dust and water protection to IP65
Signal, power and stability, the system is stable, safe and
reliable
Pixel pitch | 10mm |
Module size | 160mm*160mm ( 320mm*160mm, 320mm*320mm) |
Resolution of module | 16*16dots |
Density of pixel | 10000dots/m2 |
Pixel configuration | LED346 1R1G1B |
Red wavelength | 620-630nm; 750-900mcd |
Green wavelength | 525-530nm;1900-2100mcd |
Blue wavelength | 465-470nm;350-450mcd |
Colors | 16777216 |
Best viewing distance | 8-160m |
Horizontal/Vertical Viewing angle | 120 degree/60 degree |
Gray scale | 16bits per color |
Color temperature | 6500k |
Brightness | More than 7500cd/sqm |
IP grade | Front :IP67 back: IP65 |
Frame frequency | 60HZ |
Refresh frequency | ≥2000HZ |
Control method | Synchronization/Asynchronization |
Drive method | 1/4 Scan |
Temperature | Storage:-30°C-+85°C |
Working:-20°C-+65°C |
Operating ambient humidity | 10%—95%RH |
Earth leakage current | < 2mA |
Defects rate. | ≤0.00001(Led display line standard<0.0001) |
Flatness | Tolerance of interpixel ≤0.3mm |
Tolerance of modules clearance ≤0.6mm |
MTBF | More than 10,000 hours |
Life span | More than 100,000hours |
Operating voltage | AC110V/220V±10% |
Maximum/Average power consumption | 800/350w/m2 |
Current | ≤20mA(single LED) |
Power switch | Automatic switch |
CPU | Pentium4 or above |
Signal Input | Composite ,S-video,Component,VGA,DVI,HDMI,SDI,HD_SDI,etc |
Controlling system | main controller card+optical fiber transmission |
Control method | Asynchronization |
Systems operating platforms | WinXP,Win2000,Vista, Win7, Win8 etc. |
