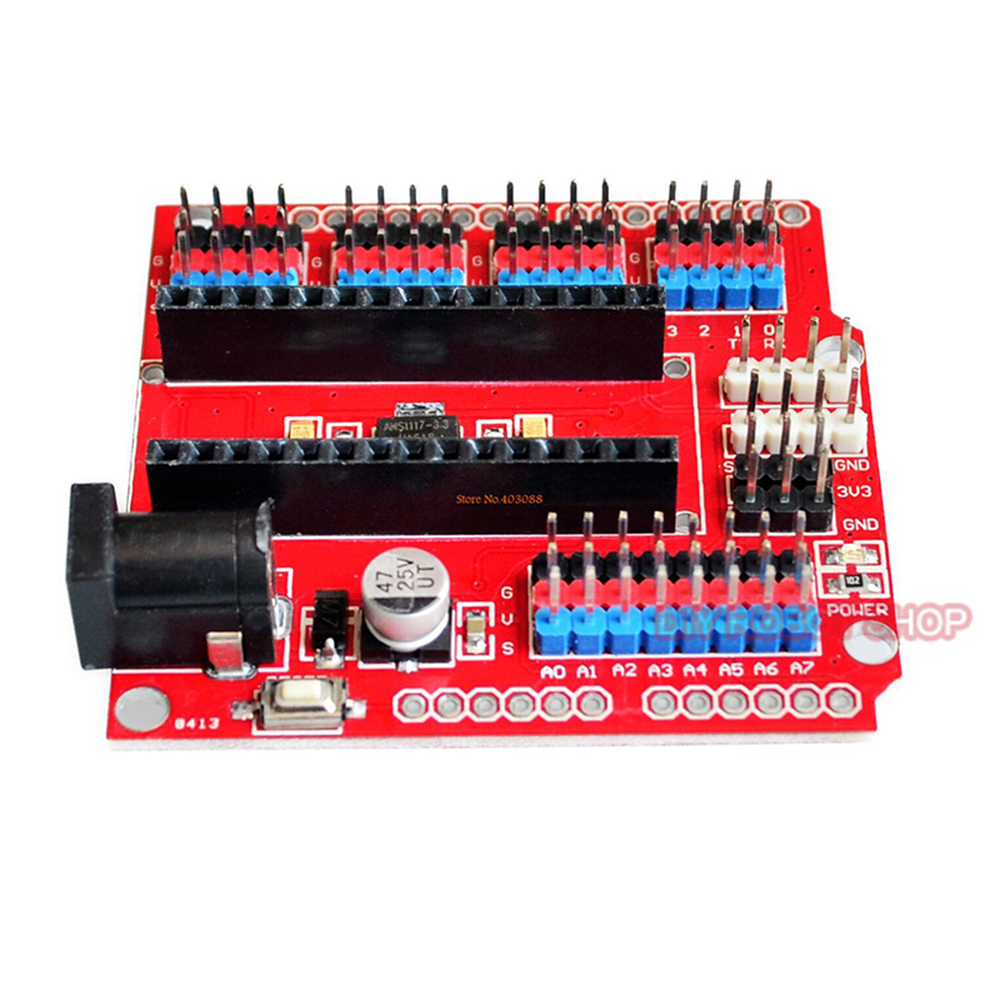

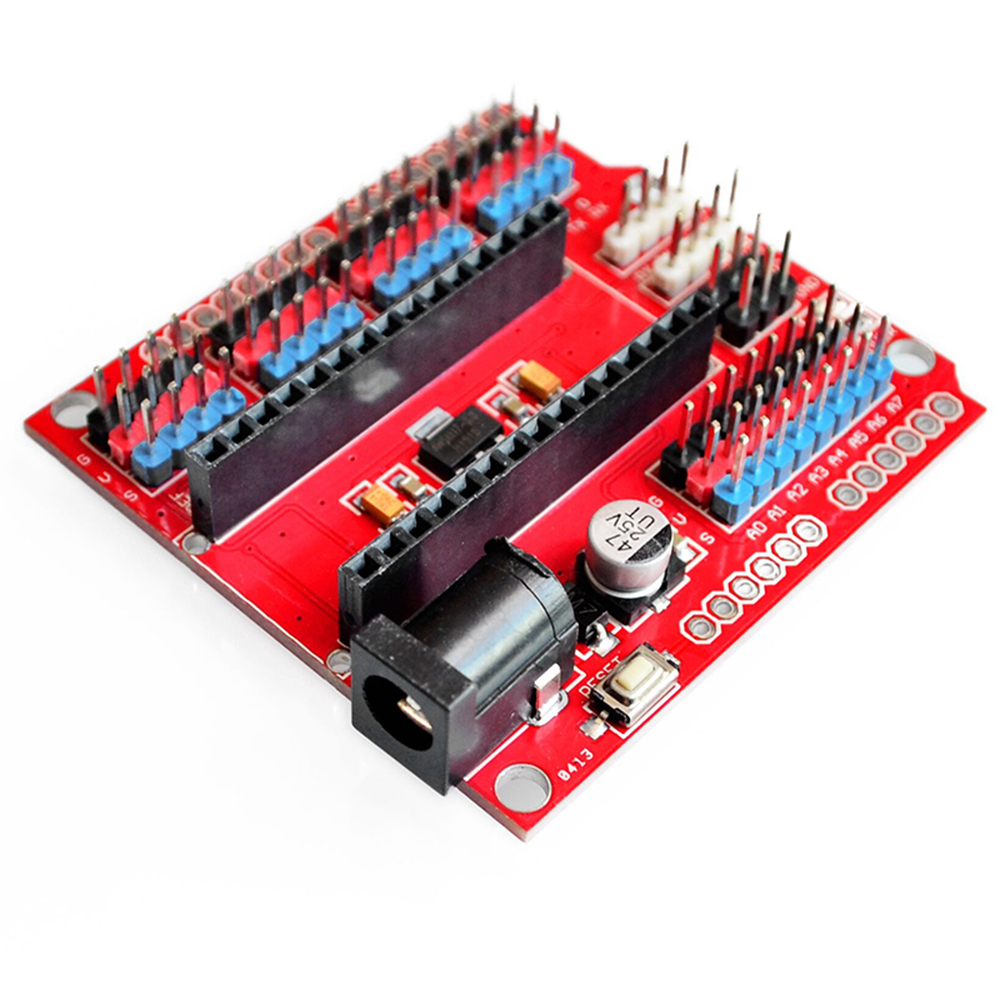

    New Module for Arduino Nano 3.0 Prototype Shield I/O Expansion Board

    Ask Lasest Price
    Brand Name : Diy Robot
    Model Number : Nano 3.0 Prototype Shield
    Certification : FCC CE
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 1000pcs/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    New Module for Arduino Nano 3.0 Prototype Shield I/O Expansion Board


    New Module for Arduino Nano 3.0 Prototype Shield I/O Expansion Board


    Description:
    porduct nameNano Expansion Adapter Breakout Board Shield Expand DC power interface for NANO USB interface

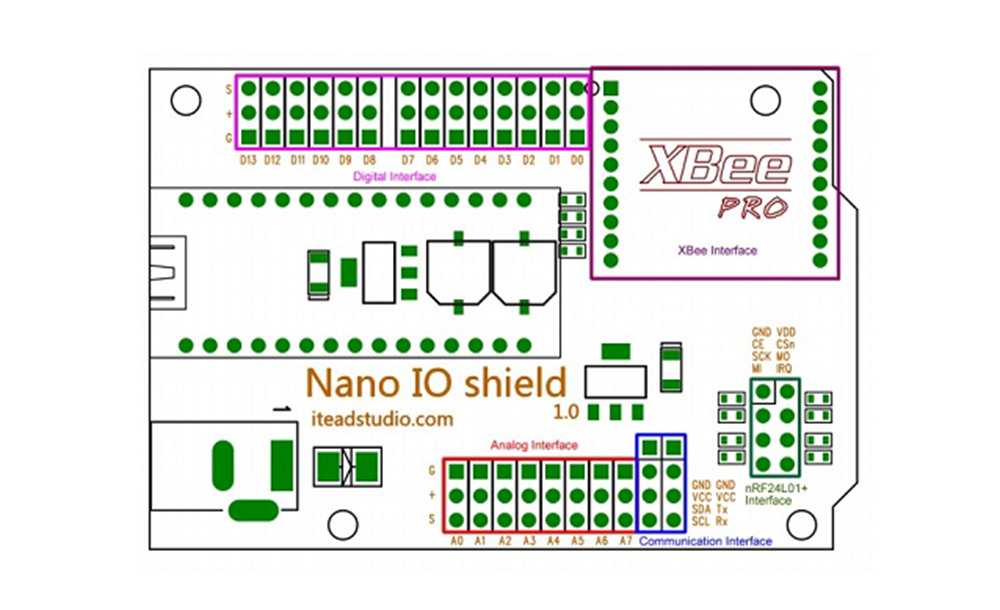

    Main Features


    Draw out all of the digital I/o mouth and analog I/o mouth, every IO mouth has the positive and negative power supply interface standard

    Lead the I2C interface on the main board, convenient and connection of the I2C device
    Increase the DC power supply interface. The NANO plate on the USB interface power supply current is actual only 50 ma, to bring high current equipment such as steering gear, when I was at this time in DC power supply interface provides an external power supply, ensure the stability of equipment operation.

    specifications

    14 I/O Pin (servo type with GND, power and signal)

    8 analog Pin with power output and GND
    6 PWM Pin
    1 Servo power input
    I2C expansion Pin
    AREF output
    3.3V output
    Size:6x5.3x1.3cm

    Package Contents1* Nano Expansion Adapter Breakout Board Shield


    Email: franklee90@outlook.com Please contact me with this email directly if you have any requirement, we will reply you within 24 hours.


    Competitive Advantage:

    1.Convenient & Friendly Customer Service

    2. Low Prices Direct From Factory Suppliers
    3. Fast Delivery Around The Globe.
    4. High Quality With Global Standards.
    5. 3 year factory warranty

    6. Safe shipping way and payment


    Tags: Nano Shield for Nano 3.0 ; Nano Shield Expansion
