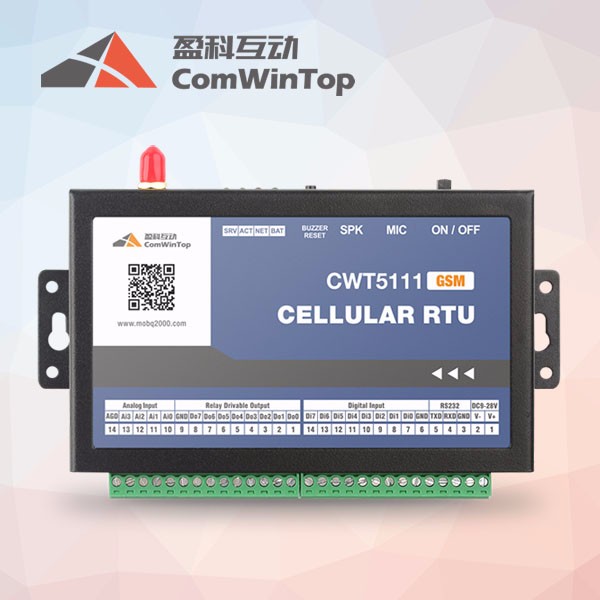

CWT5111 CELLULAR RTU
With 8DI & 8DO & 4AI, remote monitor industry systemvia sms and
GPRS
GPRS alarm, GPRS control and GPRS data acquisition
4G 3G GPRS RTU, 4G 3G GPRS data logger, GPRS alarm system,GPRS 4G
3G control relay switch, GPRS 3G remote monitor
£ Interface feature and parameters
£ Communication feature
£ Technical characteristic
l Adopted highly integrated industrial 32-bit ARM MCU
l Inside cellular module, support sms communication
l Reliable performance with built-in double watchdog, 24×7 operation
l Can set parameters for every channel to signal collection, alarm
l Multiple signal filtering mechanisms to ensure immediacy and reliability of
the system
l Network-reconnect and retransmission to ensure sms and data
accurately transmit
l Update RTC automatically or manually, clock source support Sms,
NTP, CwtIO Server
l Can set multiple timers(second, minute, day, week, month) to
execute actions, e.g. output, upload data, change setting
l Event-based linkage programming, e.g. alarm linkage output
l Inside temperature optional, can set high or low to alarm
l Optional inside battery that life is 8-20 hours, cellular module
sleep when power lost, support power lost alarm and recover sms
£ Device Specifications

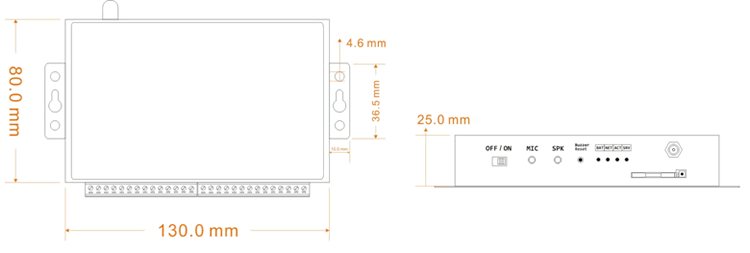

£ Size diagram
£ Package list
RTU×1, antenna×1,Standard adapter: DC 12V/1.5A×1,serial cable×1
£ Free Configure Software
l No programming! set parameter by visual interface
l Can save config file, one click finish config
l Over 100 parameters can be set, flexible! Meeting various industrial requirements

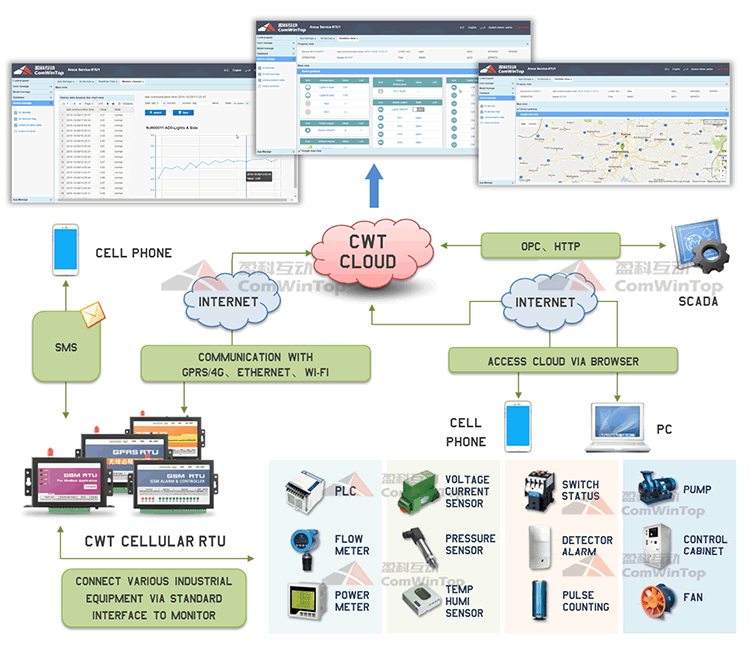

£ Free CWT Cloud
£ CWT5000 series cellular RTU list
| model | IO interface | communication interface | Modbus | SMS | TCP/IP Over cellular | More detail |
| CWT5005A | 2DI+2DO | 1 RS232 | × | √ | × | view» |
| CWT5005B | 2DI+1DO(relay) | 1 RS232 | × | √ | × | view» |
| CWT5010 | 4DI+4DO | 1 RS232 | × | √ | × | view» |
| CWT5011 | 8DI+8DO+4AI | 1 RS232 | × | √ | × | view» |
| CWT5110 | 4DI+4DO | 1 RS232 | × | √ | √ | view» |
| CWT5111 | 8DI+8DO+4AI | 1 RS232 | × | √ | √ | view» |
| CWT5015 | 2DI+3DO(relay)+1AI | 1 RS232 | × | √ | √ | view» |
| CWT5016 | 4DI+4DO+4TI+4AI | 1 RS232 | × | √ | √ | view» |
| CWT5002 | 4DI+4DO | 1 RS232(RS485 optional) | √ | √ | √ | view» |
| CWT5018 | 4DI+2DO(relay)+8AI | 1 RS232+1RS485+1Ethernet | √ | √ | √ | view» |
| Cellular module default is 2G module, option: 3G/4G module |
