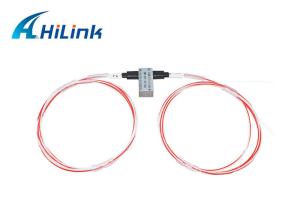

    1x1 Configurable Add / Drop Mechanical Optical Switch Mini Low Crosstalk Energy Saving

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-SW1X1-xx
    Certification : CE FCC Rohs
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 5000pcs/week
    Delivery Time : 1-4 working days
    Price : Negotiable
    • Product Details
    • Company Profile

    1x1 Configurable Add / Drop Mechanical Optical Switch Mini Low Crosstalk Energy Saving

    1x1 Configurable Add / Drop Mechanical Optical Switch Mini Low Crosstalk Energy Saving


    General

    1x1 Mechanical Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal.


    1x1 Mechanical Optical Switch support all wavelength at 1260nm~1650nm or 850nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance


    Features

    ♦ Low Insertion loss

    ♦ Wide Wavelength Range

    ♦ Low Crosstalk

    ♦ High Stability, High Reliability

    ♦ Epoxy-free on Optical Path

    ♦ Latching and Non-latching

    Applications

    ♦ Channel Blocking

    ♦ Configurable Add/Drop

    ♦ System Monitoring

    Single mode or Multimode optional



    1X1 Applications
    Optical Network
    Protection/Restoration
    Optical Singnal Routing
    Configurable Optical Add/Drop


    Optical Route


    Status AStatus B

    Micro 1x1 Mechanical Fibre Optical Switch Module SM 3V Latching Module



    Specification

    ParametersFSW-1×1-xx
    Wavelength Rangenm850±40/1300±401260~1650
    Operating avelengthnm850/13001310/1490/1550/1625/1650
    Insertion LossdBTyp:0.5 Max:0.8Typ:0.4 Max:0.6
    Return LossdBMM≥30 SM≥50
    CrosstalkdBMM≥35 SM≥55
    PDLdB≤0.05
    WDLdB≤0.25
    TDLdB≤0.25
    RepeatabilitydB≤±0.02
    Power Supplyv3.0 or 5.0
    Lifetimetimes≥107
    Switch Timems≤8
    Transmission PowermW≤500
    Operating Temperature-20~+70
    Storage Temperature-40~+85
    Weightg16
    Dimensionmm(L)27.0×(W)12.0×(H)8.2 or customization

    Order Information

    ModeWavelengthVoltage TypeControl TypeFiber TypeFiber DiameterFiber LengthConnector
    S=SM
    M=MM
    85=850nm
    13=1310nm
    15=1550nm
    13/15=1310/1550nm
    X=Others
    3=3V
    5=5V
    L=Latching
    N=Non- Latching
    5=50/125
    6=62.5/125
    9=9/125
    X=Others
    25=250um
    90=900um
    20=2.0mm
    30=3.0mm
    X=Others
    1=1m
    2=2m
    X=Others
    0=None
    1=FC/PC
    2=FC/APC
    3=SC/PC
    4=SC/APC
    5=ST/PC
    6=ST/APC
    7=LC/PC
    8=LC/APC
