Wireless web cloud server control air temperature measurement Home automatic Thermostat controller

Skype: lisali1220 Whatsapp: 0086 13652426178

SPECIFICATIONS
Power supply: DC12V/1.5A
Inside temperature measure rang: -40°C ~ +125°C, accuracy±0.3°C
Inside humidity measure rang: 0~100%RH, accuracy±2%
External temperature probe measure rang: -55°C ~ +125°C

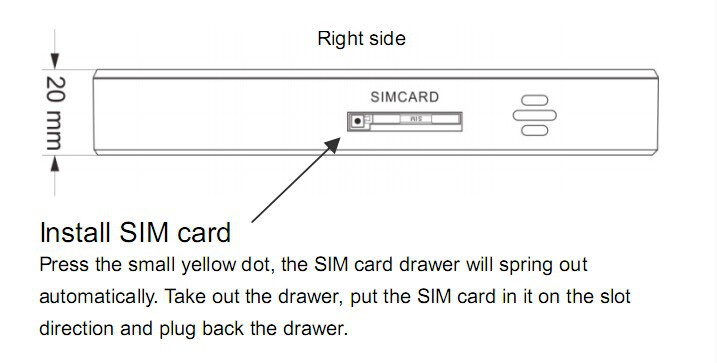

GSM quad-band, applicable worldwide, 3G optional
Working temperature: -40℃~+70℃
Relative humidity: 10-90%, No condensation
Exterior dimension: 130×130×19mm
All-aluminum panel

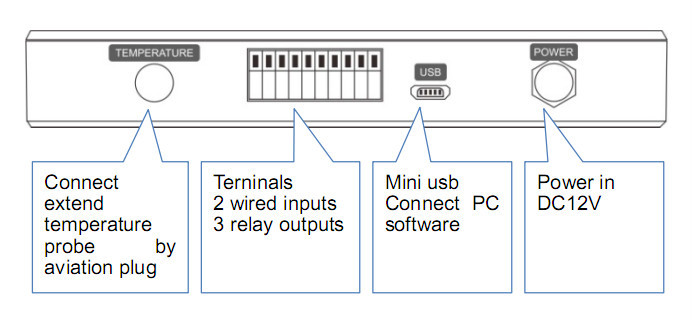

2 wired inputs for alarm, configurable alarm/recover SMS
3 relay outputs (DC220V 2A / AC125V 2A)
Power failure/recover alarm
Built-in lithium-ion battery (500mAh/3.7V) which can last 6 hours
Alert buzzer and light
Adopted highly integrated industrial ARM MCU
Reliable performance with built-in double watchdog
User programmable PC suite
Low maintenance, 24×7 operation

It has been designed as a cost effective, low power, self contained data logger. It has 2 temperature sensor inputs with embedded GSM/GPRS module to provide an all in one instrument for data logging, remote data acquisition, alarm and control.

It uploads real time data on schedule or a GPRS temperature/humidity data logger larm or pre-defined condition happens via SMS or GPRS. Alarm levels can be set for temperature inputs; it support User-defined SMS alarm messages.
CWT-J20 comes with an easy to use configuration SW for setting up all parameters, including setting alarm levels or states and pre-defined conditions for GPRS transmit etc. The configuration can be done on a PC or from sms command.

Its memory logs more than 1000 records. Flexible data logging interval starts from 1 minute up to 24 hours.

Electronica feature
DC Power supply 12V DC (Standard adapter: DC 12V/1.5A)
Power consumption 12V input Max. 340mA
GSM frequency Quad-band 900/1800/850/1900HMz
Wi-Fi 802.11 b/g security WEP/WPA/WPA2
Antenna 50 Ω SMA Antenna interface
Working temperature -30°C ~ +70 °C
Working humidity Relative humidity 95%
Digital Inputs 2 digital inputs (Dry contact)
Outputs 3 relay outputs (220V 2A)
one-piece probe temperature
measurement range
-40°C to +80°C(±0.3°C)
one-piece probe humidity
measurement range
0% to 100%RH (±2RH%)
Extend temperature probe
measurement range
-55°C to +125°C(±0.5°C) (-67°F to +257°F)
Weight 265g



WIFI Access
View Temperature Humidity data on APP
Control relay on APP
Realtime logging Temperature Humidity data

Thermostat
3 relay outputs
inside timer to program relay output

Data Logger

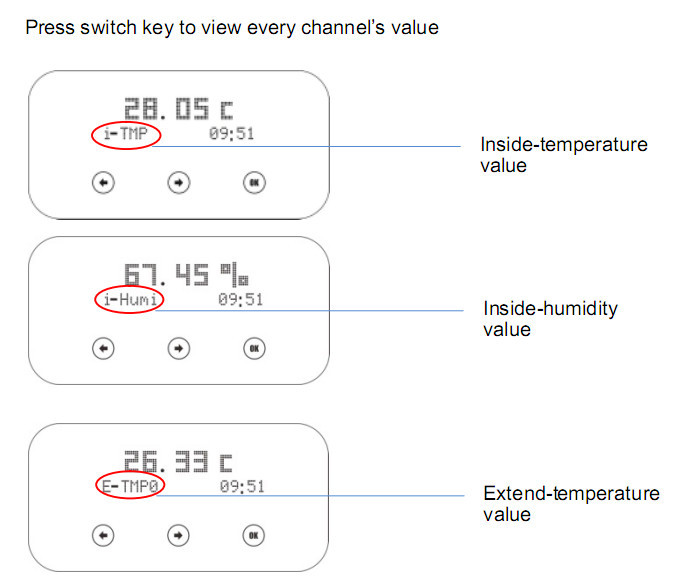

Inside temperature and humidity sensor
4000pcs temperature records
PC software program

SMS Operation
Preset 10 authorized phone numbers
SMS alarm
Control relay via SMS
Check current temperature via SMS

GPRS Communication
TCP/IP connect 4 internet servers
Http:post, CWT I/O protocol, Modbus TCP
Realtime data logger

Function Specification

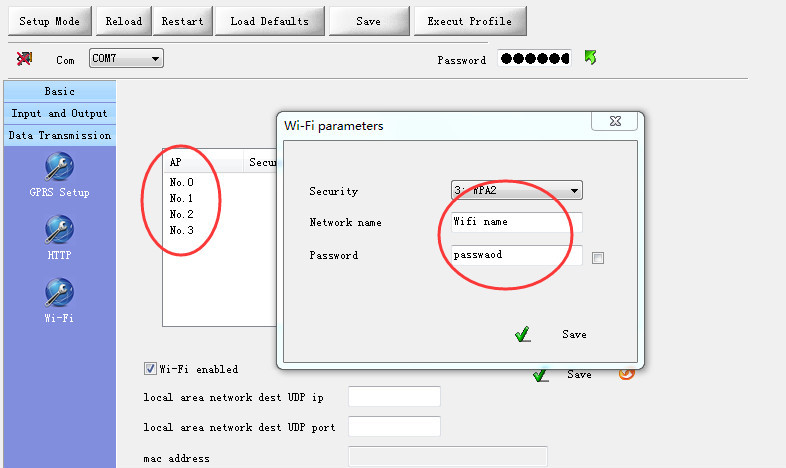

Program Software Screenshot- Adding WIFI Address:



Program Software Screenshot-Adding High/Low Temperature Range:



Program Software Screenshot-Adding Basic Parameters:
