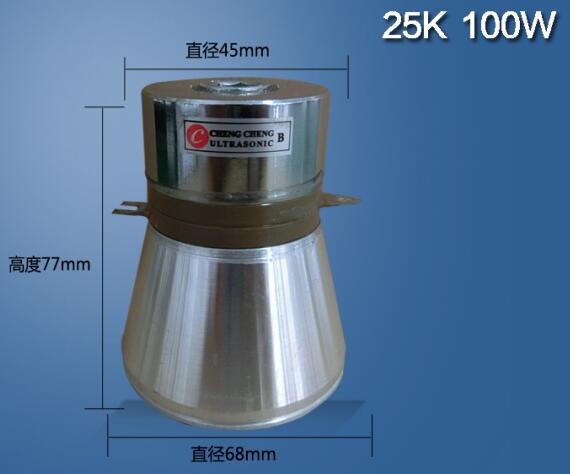

    25 Khz Frequency Cleaning Ultrasonic Piezo Transducer Waterproof


    25 KHZ Frequency Cleaning ultrasonic piezo transducer / waterproof ultrasonic transducer


    Quick Detail


    25khz 100w ultrasonic cleaning transducer:

    Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.


    Description


    25khz100w ultrasonic cleaning transducer:

    ◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

    ◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

    ◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

    ◊ Good construction: fastened by bolt, easy for assembling, high reliability.


    Applications


    widely used in ultrasonic cleaning machine and high-power industry cleaning devices.


    Naming methods as following:




    Specifications


    25khz100w ultrasonic cleaning transducer:


    Type

    Length


    (mm)

    Weigh


    (g)

    Frequency


    (KHz)

    Resonance

    Impedance

    (Ω)

    Static

    Capacity

    (pF)±10%

    Input

    Power

    (W)

    CCH-6845D-25LB

    PZT-4

    77

    710

    25

    10-20

    6600

    100


    Competitive Advantage


    25khz100w ultrasonic cleaning transducer:

    ◊ High efficiency

    ◊ High amplitude:

    ◊ Good heat resistance

    ◊ Good construction:
