Marine Generator with CCS class certificate 30KW to 800KW

    Buy cheap Marine Generator with CCS class certificate 30KW to 800KW from wholesalers

    Buy cheap Marine Generator with CCS class certificate 30KW to 800KW from wholesalers
    • Buy cheap Marine Generator with CCS class certificate 30KW to 800KW from wholesalers

    Marine Generator with CCS class certificate 30KW to 800KW

    Ask Lasest Price
    Brand Name : FARADAY
    Certification : CE, ISO9001
    Model Number : FDM3EM1-4
    Price : USD 7600--10600
    Delivery Time : 7-10 days
    Payment Terms : T/T OR L/C
    Supply Ability : 500 pcs/ month
    • Product Details
    • Company Profile

    Marine Generator with CCS class certificate 30KW to 800KW

    Specifications for Marine Generator with CCS class Certificate 30KW to 800KW

    1. Directly Manufacturer
    2. 100% Copper wire AC Alternator 150KVA/120KW
    3. OEM Service
    4. CE/ISO Approved
    5. 30-50 days lead time

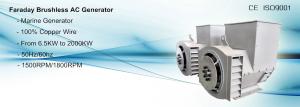

    FARADAY 100% Copper Wire Marine Type Three Phase AC Alternator 30KW-800KW

    Alternator Features:

    - Brushless, Synchronous AC Alternator, Easy operation and simple maintenance

    - IP23, Insulation Class H Alternator

    - Usage: As a electric power source matching diesel engines for lighting purpose in Town, Countryside, Work sites, Mountain and Pasture lands

    - Drip-proof type

    - 3 phase 4 wire type, Star connection

    - 50HZ, 380V, 1500RPM as standard, also 60HZ can be made as customers’ requirement

    - Certificate: CE/ISO9001

    Operating conditions

    Under the following environment, The generator could be continuous and rated running:
    Above sea level: Not exceed 1000m
    Cooling air temperature: 258~313K(-15 ℃~ 40 ℃)
    Relative air damping: not exceed 90%

    Alternator Specification:

    3-PH, 50HZ@1000RPM, 400/230V(Also can be made according to customers’ special requirements)

    Alternator Model

    FDM3EM1-4

    Power

    150kva / 120kw

    Exciter type

    Brushless, Self excitation system

    Power factor

    0.8

    Voltage adjust range

    ≥3%

    Voltage regulation NL-FL

    ≤±0.3%

    Insulation Grade

    H

    Protection Grade

    IP23

    FARADAY FD7 Series Alternator data for your reference:


    Marine Type Three Phase AC Brushless Alternator
    Alternator ModelRated Power KVARated Voltage
    (V)
    Rated Current (A)Rated Speed
    (r/min)
    Power factorEfficiency
    (%)
    Phase
    50Hz60Hz50Hz60Hz50Hz60Hz50Hz60Hz50Hz60Hz
    FDM2A-437.5454004505458150018000.882.784.03
    FDM2C-450554004507271150018000.886.187.43
    FDM2DS-462.5704004509090150018000.889.089.93
    FDM3A-48090400450115115150018000.888.589.33
    FDM3C-494105400450136135150018000.890.491.33
    FDM3DS-4112.5130400450162167150018000.890.791.33
    FDM3D-4125140400450180180150018000.891.291.83
    FDM3EM-4150170400450217218150018000.892.292.83
    FDM3G-4187.5220400450271282150018000.892.793.23
    FDM3H-4225270400450325346150018000.892.593.03
    FDM4MS-4250290400450361372150018000.892.993.33
    FDM4M-4312.5350400450451449150018000.893.393.83
    FDM4LP-4375430400450541552150018000.893.794.13
    FDM5S-4400460400450577590150018000.894.094.33
    FDM5MP-4450500400450650641150018000.894.594.83
    FDM5LS-4500570400450722731150018000.894.895.03
    FDM5L-4575640400450830821150018000.894.795.03
    FDM5LP-4625680400450902872150018000.895.095.23
    FDM6A-470080040045010101026150018000.894.594.73
