    Battery Cell Tester Battery Crush Testing Equipment Hydraulic Servo Drive PLC Control

    Ask Lasest Price
    Brand Name : Gaoxin
    Model Number : GX-5067
    Certification : ISO 9001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 15 sets per month
    Delivery Time : 15 ~ 20 days after payment
    • Product Details
    • Company Profile

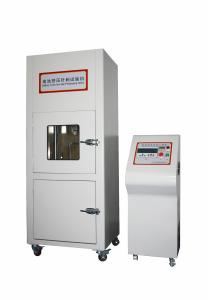

    Battery Cell Tester Battery Crush Testing Equipment Hydraulic Servo Drive PLC Control

    Battery Cell Tester Battery Crush Testing Equipment Hydraulic Servo Drive PLC Control


    Product Description


    This machine is suitable for simulation of various types of batteries in the use, transportation, storage and other processes, the battery is squeezed to determine the safety of the battery performance. Battery to no explosion, no fire as qualified.


    Test Standards


    UN38.3, IEC62133, SAE-J2464, UL1642, UL2054, YD 1268, YDB 032, IEC60086-4, MH/T 1052, MT/T1051


    Product Specification


    Power transmission method

    Hydraulic Servo

    A) Two plates grip the battery

    B) When the tested sample is gripped by the two plates, it can begin to crush.

    The pressure13kN
    Accuracy of the force display0.1N
    Resolution1/10000
    Compression SpaceW300*D300*H300mm(or custom with the battery size)
    Distance of Compression300mm
    Test speed0~100mm/s
    Holding time1s~9999h( arbitrary set)
    CABLE PORTDiameter 50mm on the left side of the chamber
    Interior materialA3 steel paint drying
    Exterior materialSUS#304
    Power380V,50~60HZ,
    Dimension (mainframe)66*53*168cm
    Dimension (controller)55*35*100cm

    1.How can we guarantee quality?
    Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

    2.What can you buy from us?
    Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
    environmental test chamber, paper testing machine etc.

    3.What details are required for a quotation?
    What is the test standard
    What product or material testing from this machine
    What is the Test object size
    What is you want the machine appropriate size

    4.Can I make changes before I ship?
    No,it can not change if machine finished

    5.When will my order ship?
    Need 10-45 workdays base on which type the the machine

    6.How can I track my order?
    We will send the schedule by each stage
