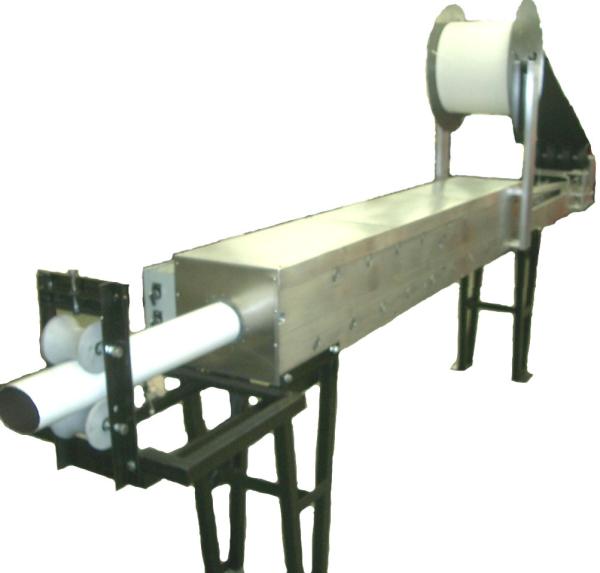

Portable Round Pipe Roll Forming Machine Downspout With 2"X3",
3"X3", 3"X4"
Specification Of Pipe Roll Forming Machine
Pipe Size: 2”x 3” 3” x 3” 3”x 4" Round , CUSTON
(Each machine does one size and configuration)
Speed: Standard 30 ft./min.
Optional 45 or 60 ft./min. (aluminum)
Material: Aluminum .019 - .024 in.
Steel 29 - 26 ga.
Copper 16 oz.
Warranty: 2 year limited parts warrant
Spools: One 15” I.D. spool includ
Electrical: 110 volt or 220 volt
ON/OFF switch
Forward/Reverse switch
Entrance JOG button
Models: Portable or stationary
Semi-automated: length control with limit switch
Round or rectangular models
Drive System: Urethane top and bottom drive rollers
for smooth even, non-twisting drive
Frame: 1” x 5” Aluminum side bloc
Electrical: 110 volt or 220 volt
ON/OFF switch
Forward/Reverse switch
Entrance JOG button
Models: Portable or stationary
Semi-automated: length control with limit switch
Round or rectangular models
Cutoff Mechanism: Hand operated Quadra-shear with built-in
crimper or Cutoff saw (Round models)
Optional automated pneumatic activation
Main Features And Components Of The Machine
The structure is simple and the appearance of the machine is
beautiful because we adopt the shape-steel structure and process as
a whole after welding. It has the ability of strong loading and
stable operation when running the machine.
All the components of machine are from brand-famous enterprise so
that they ensure the machine normal function very effectively.
We adopt the automatic length-fixed forming and cutting to
guarantee the length to be precise and the finished product clear
without deforming .
It is very easy to install the equipment and suitable for producing
in the factory.
The machine has features of low noise and high efficiency.
General Description
It can produce the sealed color water pipes through forming the
colored steel sheet and whipstitch it. It adopts PLC control
system, AC frequency conversion speed-adjust technology, therefore
it can automatically cut to length. Curving pipe forming machine is
the complementary equipment which can be used to curve and neck
down the pipe. The whole machine adopts can control to actualize
automatic produce, the angle can be adjust manually. We can design
and manufacture machines for forming different profiles according
to requirement form customers.
Our Advantage
High Quality
Reliable
Durable
Reasonable Price
Good after Service
Introduction
We, Friendship Machinery Co.,Ltd, attaches great importance on
technology innovation, progress has been made on scientific
management as well as Co. , culture. China leading expert in
designing and manufacturing equipments for welding and cutting,
automation system and metal works. We use and produce
high-technology utilizing the most available robotic and automatic
techniques. Every work is uncompromisingly designed to improve our
clients' competitiveness and productivity.
We invest more on developing roll forming machine such as Metal
roof & wall panels machines, C&Z purlin machines drywall
Stud-track forming machines, Metal decks machines, No-girder and
Column curves forming machine, Guard rails forming machines,
Downspout pipes forming machines and so on. With fast development ,
very short period for construction and beautiful external
appearance, as well reasonable price was occupied in the market of
building industry.
EXCELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
