    360 Degree Rotation Hydraulic Wire Crimping Tool Crimping Plier Max Compression 120KN

    Ask Lasest Price
    Brand Name : XINYA
    Model Number : HZ-400
    Certification : ISO
    Price : USD200-300/set
    Payment Terms : L/C, T/T,
    Supply Ability : 100sets/week
    Delivery Time : 7 workdays after payment
    • Product Details
    • Company Profile

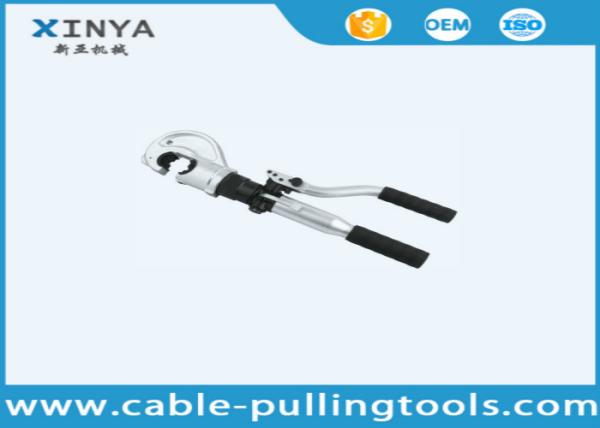

    360 Degree Rotation Hydraulic Wire Crimping Tool Crimping Plier Max Compression 120KN

    HZ-400 Hydraulic Cable Lug Crimping Tool Crimping Plier Max Compression 120KN


    Feature:

    Safety Hydraulic power cable lug crimping tool : HZ-400 Crimping range : Cu16-400mm2 crimping force:120KN

    1.The tool features with C type head

    2. Interchange dies

    3. For ease of operation and comfort the operator can make the tool head fully rotated tool

    350degree a double speed action reflected by a fast advancing speed for rapid approach of

    the crimping die the connector and a slower more powerful speed for crimping

    4. The built-in safety vavle will by-pass the oil supply when the maximum pressure is reached,

    automatically pressure release.Manual retract after crimping


    Technical Data

    Product No.Model TypeOutput(KN)Crimping Range(mm2)Length(mm)Packing termCrimping FormWeight(kg)
    80069HZ-40012050-400460Iron boxSix Angle5.3

    Quality 360 Degree Rotation Hydraulic Wire Crimping Tool Crimping Plier Max Compression 120KN for sale
