Upright Reflected Digital Metallurgical Microscope iMet-213A with
Polarizer Device in Trinocular
Technical Data Download: iqualitrol
Metallurgical Microscope iMet-213A
Brief Introduction:
iqualitrol iMet-213A reflected metallurgical microscope is suitable
to observe the surfaces of non-transparent object.
iqualitrol iMet-213A is equipped with vertical illuminator, plan
achromatic objectives with long working distance (no cover glass),
wide-field eyepieces and set polarizer device in trinocular.
iqualitrol iMet-213A provide clear and high-contrast picture,
beautiful sculpt, convenient operation, etc.
iqualitrol iMet-213A is an ideal instruments for research work in
metallography, mineralogy, precision engineering, electronics, etc,
and suitable for scientific research, teaching demonstration in the
colleges and factory.
Technical Specifications:
| Model | iMet-213A |
| Eyepiece | Wide field WF10X(Φ18mm) |
| Objective | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 |
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 |
Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70 |

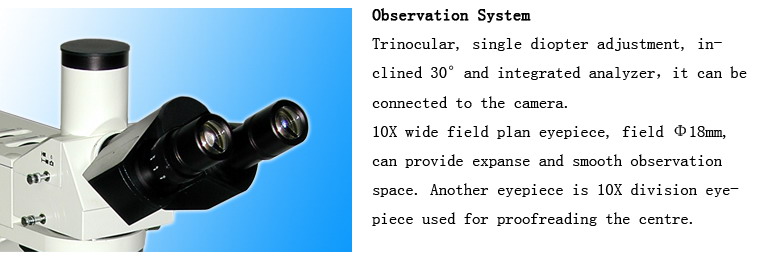

| Eyepieces tube | Trinocular,Inclination of 30˚, (Analyzer with field diaphragm to
switch) |

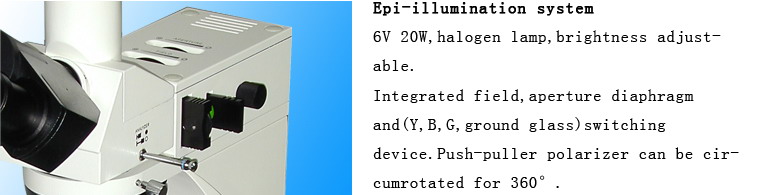

| Vertical illumination unit | 6V 20W, Halogen lamp,Adjustable brightness |
| Vertical illumination With field diaphragm ,aperture diaphragm and
polarizer,(Y,B,G)filter and Ground glass |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and up
stop, minimum division of fine focusing: 2μm. |
| Nosepiece | Quadruple Backward ball bearing inner locating |
| Stage | Double layer mechanical
(Size: 210mmX140mm,moving range:63mmX50mm) |
Features:
1, With plan achromatic objectives with long working distance (no
cover glass) and wide-field eyepieces, can get clear pictures and
wide view field.
2, Coaxial coarse/fine focus system, with tensional adjustable and
up stop, minimum division of fine focusing: 2μm.
3, 6V 20W halogen lamp, adjustable brightness.
4, Trinocular, can switch to observe normally or to observe the
polarize, can send 100% of light to the binocular eyepieces or to
the top port.
Optional Accessories:
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Wide field WF16X(Φ11mm) | 1051016 |
| Dividing 10X(Φ18mm) 0.1mm/Div | 1121010 |
| Objective | Plan achromatic objectives with long working distance (no cover
glass) PL L 40X/0.60 | 2250140 |
| Plan achromatic objectives with long working distance (no cover
glass) PL L 60X/0.75 (Spring) | 2250160 |
| Plan achromatic objectives with long working distance (no cover
glass) PL L 80X/0.80 | 2250180 |
| Plan achromatic objectives with long working distance (no cover
glass) PL L 100X/0.85 (Spring) | 2250111 |
| Plan achromatic objectives (no cover glass) PL 100X/1.25(Spring,
oil) | 2240111 |
| Nosepiece | Quintuple Backward ball bearing inner locating | 032002 |
| CCD adapter | 0.4X | 810001 |
| 0.5X | 810004 |
| 1X | 810002 |
| 0.5X with dividing 0.1mm/Div | 810003 |
| Camera | DV-1 With USB & video output | 800001 |
| DV-2 With USB output | 800003 |
| DV-3 With video output | 800005 |
| Photo unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | 840001 |
| 4X Focusing photograph attachment | 840002 |
| MD Adapter | 840003 |
| PK Adapter | 840004 |
| Digital camera adapter | CANON(A610,A620,A630,A640) | 820001 |
