Feature:
Housing material:ADC12 high thermal conductivity material,
anti-dust thermal conductivity coatings
Protection Grade:IP67
Power supply: MeanWell HLG series,
Power Factor:>0.97 ,Power Efficiency:>90%
LED Chip:Bridgelux chip.
High output: 90lm/W
70% energy saving than HID
Use high-tech spraying technology, anti-corrosion, apply to various
adverse environments.
Follow RoHS and CE certified
5 years warranty
Total Power Consume | 120w |
Whole Fixture Lumen | ≥9,840 lm |
LED Chip/Brand | 117 x USA Bridgelux , 120-130lm (350ma) |
LED Efficacy | 120lm – 130 lm @ 350Ma (350Ma ≡1w) |
Illuminant | equal to HPS 400 ~ 500w* |
Input | 100-277 V |
Hz | 50/60 Hz |
Power Factor | ≈ 0.98 |
Driver Efficiency | ≈ 90% |
CRI | ≥70% |
Colour Temperature | Warm White : 2700 - 4000k Cool White : 5500 - 6500k |
Driver | Meanwell HLG Series |
Ingress Protection | IP68 |
Body Material | Die Cast Aluminum |
Dimension | 400 x 400 x 185 mm |
Packing Size | 480 x 480 x 260 mm |
Feature | Anti Explosive : Class “E” - Gas filled environment– ExemIIT6 Gc “e” class |
Operating Temperature | - 40°C - 50°C |
Net Weight | 12.5 KG |
LED Life Span | 50,000 – 100,000 hours |

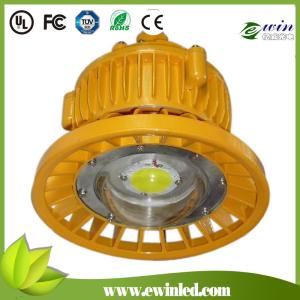

The patent pending CNP TMCanopy Luminaire is an industry and
commercial leading, innovative,energysaving fixture. CNPTMis
designed to replace traditional HID, fluorescent light source.
Water-proof, Dust-proof, and Corrosion-proof, IP rating is up to
IP67, can be used in different environment. High performance
aluminum heat sink specifically designed for LED, ensure best heat
dissipation.
Dimension:
Installation:
1.Fix tow M10 screws on the wall according to the distance between
the holes of the bracket.
2.Install the bracket on the screws and then fasten it with the
nut.
3.Fix the position of the lamp.
4.Connect the transformer with the AC power wire.
Application:
- Apply to gas station, factory, outdoor canopy, retail stores or
other places which need anti-corrosion,anti-explosion,dust-proof
and water-proof luminaires.
