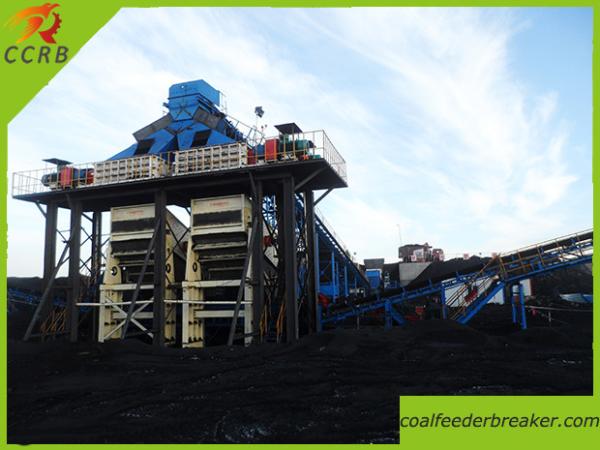

3000TPH Skid Mounted Open Pit Mine Coal Crushing Plant
Introduction:
Skid Mounted Open Pit Mine Coal Crushing Plant mainly crushes raw coal mine from opencast working, passes the
primary crushing, secondary crushing, even tertiary crushing, then
enters into screening system, finally reaches the
customers’specified size. The whole production line includes
Crushing system, Screening system, Feeding system, Conveying system
and Electrical system, etc. Please see the following:
Crushing System(Include feeder breaker&coal sizer)
Screening System(Include linear vibrating screen&circular
vibrating screen)
Feeding System(Include vibrating feeder&belt feeder)
Conveying System(Belt Conveyor)
Advantage:
- Super processing capacity, reach maximum 3000 tons per hour.
- Diversified product granularity, compact structure and stable
operation.
- Quick installation and adjustment, convenient civil engineering and
steel structure construction.
- Coal crushing plant key component adopts international famous brand
to ensure efficient work.
- With complete electrical and monitoring system, PLC remote control
and high intelligence.
Coal Crushing Plant Technical Parameters:Model | PSZ300 | PSZ500 | PSZ1000 | PSZ1200 | PSZ2000 | PSZ2500 | PSZ3000 |
Input Size (mm) | ≤500 | ≤700 | ≤1200 | ≤1500 | ≤1800 | ≤2000 | ≤2000 |
Output Size (mm) | 50-80 | 80-150 | ≤300 | ≤300 | ≤300 | ≤300 | ≤300 |
Capacity (t/h) | 300 | 500 | 1000 | 1200 | 2000 | 2500 | 3000 |
Project Engineering:

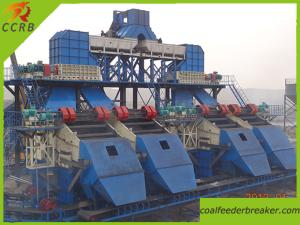

Baishihu Open Pit Coal Mine of Xinjiang Guanghui Energy Co.,Ltd
2500t/h Open Pit Mine Coal Crushing and Screening Plant:
Basic Process:
Raw coal bunker→Feeder breaker(apron feeder and single roller
crusher)→Belt conveyor→Secondary crusher(coal sizer)→Vibrating
screen→Lump coal/Powder coal→Finished coal bunker→Truck loading
Installation and Delivery:
Strict site three-level quality inspection system
- Installation captain inspection: Evaluate the installation level of
coal crusher plant.
- Spot QA engineer inspection: Inspect the whole installation process
and key components.
- Service engineer inspection: Inspect the debugging and running
condition of whole production line.
Training System:
Provide professional staff training for customers
- Service engineer offers spot training and production line operation
manual.
- After-sales personnel visit customers on a regular basis.
- Design engineer provides professional service for customers for
free.
FAQ:
1. If the spot coal dust is too much, how to solve?
We can add the dust collector in the whole production line to avoid
dust pollution.
2. If the mining area sand wind is too large, what should be noted
in the coal crusher plant?
We should note the strength of steel structure, design the
reasonable strength of steel structure.
3. If the mining area always rains, how to ensure the production
line normal operation?
We can design and add rain cover above all equipments.
4. If the mining area is located in a high altitude, what should be
paid attention to?
Electrical system should be specially noted, we can provide special
electrical motor and relevant control device.
5. Which kind of types this coal crusher plant has?
Generally two types: Mobile type and Semi-mobile type.
6. What is processing capacity of this production line?
From 300t/h to 3000t/h capacity.
7. Is this production line full-automatic?
Yes, full-automatic production, operate all equipments by control
room.
8. What is the guarantee period of production line?
One year, during the guarantee period, provide after-sale service
for free.
9. How to transport and install this production line equipment?
All equipments joint is adopted bolt connection, convenient
assembling, easy to transport.
Service engineer guides installation and trains staff in
construction site.
10. What is the delivery term?
It is about 40-90 working days according to different scale of
production.
11. What is the payment term?
T/T or L/C.
12. What is the port of shipment generally in China?
Shanghai, Tianjin or Qingdao.
