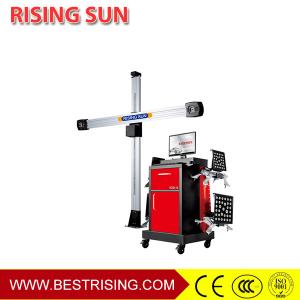

3D aligner machine auto alignment equipment
Product feature
1.Windows 7, machine with self-owned intellectual property ;
2.Automatic adjustment for height of camera beam , automatic
tracking the target plates ;
3.Automatic checking for height of car lift , automatic calibrate
the camera ;
4.With black-box functions , all files can be saved for future
analysis ;
5.Quicker running for alignment with guiding menu ,can read
database within 3 minutes ;
6.3D animated measurement , easy for training and operate ;
7.Available for OEM vehicle database ;
8.Manual enter height of vehicle ;
9.“ MKS” measurement special for Benz ;
10.Available for single-wheel positioning ,two wheel positioning ,
four wheel positioning ;
11.26kinds of language for different countries and districts ;
12.Adjustment function for FORD bushing ;
13.Instruction function for North star shims ;
14.Measurement for Caster Trail ;
15.Measurement for Scrub Radius & SAI ;
16.Cradle Adjust of motor ;
17.A-Arm resetting on turntable ;
18.Adjustment for Camber at Zero Toe
19.Drag Link Adjust to ensure the steering wheel in the middle
20.Single Tie Rod Adjust
Technic data
Item | Measurement Accuracy | Measurement Range | Total Measurement Range |
Camber | ±0.01° | ±8° | ±8° |
Caster | ±0.05° | ±19° | ±19° |
Front wheel KPI | ±0.02° | ±19° | ±19° |
Total Toe | ±0.01° | ±2° | ±8° |
Rear wheel thrust angle | ±0.01° | ±2° | ±4° |
Toe-out on turn | ±0.08° | ±2° | ±40° |
Axle offset of Rear wheel | ±0.02° | ±2° | ±4° |
Wheel tread difference | ±0.03° | ±2° | ±8° |
Front setback | ±0.02° | ±2° | ±4° |
Rear setback | ±0.02° | ±2° | ±4° |
Wheel tread | ±0.64cm(±0.25cm) | <265cm(<105in) | <265cm(<105in) |
Wheelbase | ±0.64cm(±0.25cm) | <533cm(<210in) | <533cm(<210in) |
Standard accessories include ,
n Camera beam x 1
n Computer x 1
n Printer x 1
n Turnplate x 2
n Brake lock x 1
n Steel wheel lock x 1
n Target plate x 4
n Wedge x 1
n Hanger for clamp x 4
Packing : total 3cartons ,250kgs , 1.75cbm
n 1840x765x750mm , 1ctn
n 2900x370x320mm , 1ctn
n 2900x370x320mm , 1ctn
