    MYH-1 Bank ATM Access Magnetic Card Reader,Wiegand format output

    Ask Lasest Price
    Brand Name : SeabreezeRFID
    Certification : RoHS
    Model Number : MYH-1
    Delivery Time : In stock
    Payment Terms : L/C, T/T, Western Union, PayPal
    Supply Ability : 1000pcs/month or Specify the number
    • Product Details
    • Company Profile

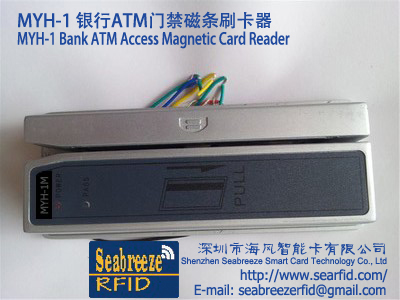

    MYH-1 Bank ATM Access Magnetic Card Reader,Wiegand format output

    MYH-1 Bank ATM Access Magnetic Card Reader,Wiegand format output
    Use:
    Apply to banks, office buildings and other auto-door access control. Using aluminum alloy shell, firm structure, beautiful appearance.
    ODM and OEM products according to customer requirements.
    Characteristic:
    ①any bank ATM card can be used, no capacity constraints.
    ②aluminum alloy shell firm durable, anti-disassembly screw design, anti-theft anti-pry.
    ③Magnetic head reading conforms to the ANSI/ISO standard.imported alloy magnetic head high sensitivity, super wear-resistant, HICO (4000Oe) or LOCO (300Oe) card can be used.
    ④embedded optical coupling open delay input button contact, convenient installation out button switch.
    ⑤sound and light dual status indicator for read card; and has the anti-pry alarm remote output interface.
    ⑥Wiegand card number output, online server, faithfully recording staff into and out of time.
    ⑦adopt the unique anti-jamming method, easy to install and use a variety of environment.
    Main technique parameter
    Power supplyDC 12V
    Permits biggest lock output current3A(12V)
    Static power loss22mA
    Current action40mA (excluding electrical lock current)
    Open lock time1~10 seconds adjustable
    Lock and automatically open the door with time lag0.5 seconds
    Magnetic card standardISO 7811-7815
    Allow the brush card speed10~120cm/s
    Magnetic head life≥600,000 times
    Working conditions temperature-42℃-+45℃ (-43.6℉-+113℉)
    Working conditions humidity10%-90%RH
    Appearance sizeL138×W56×H32mm
    Weight400g
