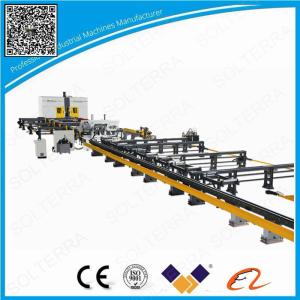

CNC H BEAM DRILLING CUTTING LINE

2.The machine has 3 drilling units, all the 3 drilling units can work simultaneously on the web and flanges of the beam. It can provide high efficient drilling capacity with wide range of holes diameters.
3.Each of the spindles adopts the technology of self-controlled feeding, it can moves along the two coordinates and realize drilling feeding, which ensure three spindles drilling simultaneously on the three sides of an H-shaped steel.
Machine advantages

1. The web of beam is supported by many hydraulic support blocks in order to prevent deformation during drilling.
2. Rollers type feeding, AC servo motor powers the feeding with dynamic speed control enabling the best drilling condition.
3. The two horizontal drilling heads are different. One is fixed and the other one can do the horizontal movement which is adjustable in accordance with different web height.
4. Imported external atomizing cooling system can prolong the drills life
5. The control system consists of industry PC with PLC and control modules. Individual control console and electrical cabinet are fixed beside the main machine.
6. Remote diagnosis and Ethernet connection is also available.

Technical Parameter

Established in 1991, Jinan Liaoyuan Machine Co.,Ltd is one of the most earliest enterprises in equipment machining industry. After more than 20 years unremitting efforts, now we has developed into a modern large comprehensive high-tech enterprise with our four main businesses, covering industrial equipment manufacturing, aluminum casting and machining, no-ferrous metal casting, window-door & curtain wall processing machinery, and integrating with scientific research, manufacturing sales and international trade.

As one of the world’s leading manufacturers of industrial equipment, the main products of Liaoyuan Machine include CNC production line for iron tower, stereo garage machinery, steel structure and steel sheet; a full line of aluminum & upvc window door production and curtain wall processing machine.

Our Machine is mainly used for used for construction and steel structures.

CNC Angle Steel Punching Marking Shearing Machine

CNC Angle Iron Drilling Marking machine

CNC H Beam Drilling Sawing Beveling Line

CNC Steel Plate drilling machine

Plate Punching Marking Drilling machine

Aluminum and UPVC Window Doors Making machine

Our persistent pursuit in innovation of technology and company policy, advanced technology and professional talent being introduced, the international advance design equipment being used, the international standard being executed, the international advance design idea and technology being absorbed, international well-known key parts being used, those make product quality continuously upgraded.
