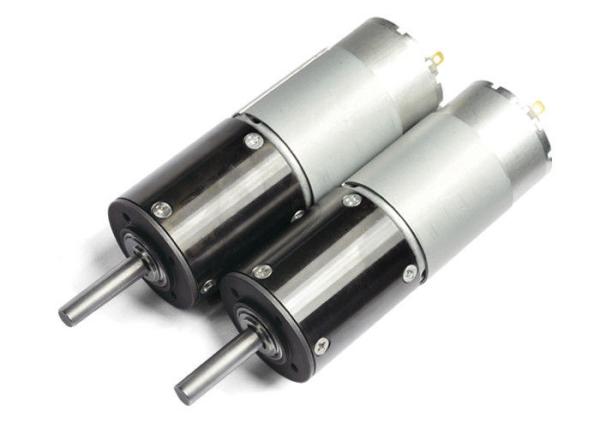

Automobile Tail Gate Reduction DC Motor Gearbox 12V Low Speed

Name: Automobile Tail Gate Reduction DC Motor Gearbox 12V Low Speed
Brand: DAITTO
Price: 1 USD

Ask Lasest Price
Brand Name :	DAITTO
Certification :	ISO,CE
Model Number :	DA038038-977

Add to Cart

Product Details
Company Profile

Automobile Tail Gate Reduction DC Motor Gearbox 12V Low Speed

Type:	DC Gear Motor	Voltage:	12V Or Customised
Material:	Metal	Diameter:	38mm
Gear Ratio:	977:1	Rated Load Torque:	71100 Gf.cm
Rated Load Speed:	5rpm	No Load Speed:	5rpm
No Load Current:	295 MA MAX

Automobile Tail Gate Reduction DC Motor Gearbox 12V Low Speed

Description

Parameters	diameter	38mm Gearbox
	motor	DC Gear Motor
	working temperature	-40 to 95℃
Certification	ROHS/ISO9001/ISO14001/SGS/TS16949
Suitable for	Automobile Tail Gate,pan-tilt camera,Robot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc.
OSD Language	English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean
The basic specifications for reference only, specifications can be customized.

Specifications

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length L1
	Rated	At No Load		At Rated Load				Overall Length L
	Voltage	Speed	Current	Speed	Current	Torque		Overall Length L
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
DA038038-16	12.0	347	285	331	1505	2355	231.0	100.7	35000	105000	16	43.7
DA038038-25	12.0	222	285	212	1505	3680	360.9	100.7	35000	105000	25	43.7
DA038038-39	12.0	142	285	136	1505	5741	563.0	100.7	35000	105000	39	43.7
DA038038-64	12.0	87	295	83	1505	6210	609.0	113.7	55000	165000	64	56.7
DA038038-100	12.0	55	295	53	1505	9703	951.6	113.7	55000	165000	100	56.7
DA038038-156	12.0	36	295	34	1505	15137	1484.5	113.7	55000	165000	156	56.7
DA038038-244	12.0	23	295	22	1505	23676	2321.9	113.7	55000	165000	244	56.7
DA038038-256	12.0	21	295	21	1510	18630	1827.0	126.7	80000	240000	256	69.7
DA038038-400	12.0	13	295	13	1510	29109	2854.8	126.7	80000	240000	400	69.7
DA038038-625	12.0	8	295	8	1510	45483	4460.6	126.7	80000	240000	625	69.7
DA038038-977	12.0	5	295	5	1510	71100	6972.7	126.7	80000	240000	977	69.7
DA038038-1526	12.0	3	295	3	1510	80000	7845.6	126.7	80000	240000	1526	69.7

above specifications just for reference and customizable according to requirements

Reliability Test

* Noise Test

* Water-proof Test

* Life Test

* Impact Test

* Storage Test

* Salt Spray Test : salt spray can test the products’ resistance to corrosion
* Impact Test : two objects striking each other at high relative speeds
* Storage Test : being stored under normal temperature for 1 or 2 years to test stability
* Environmental Related Substance
