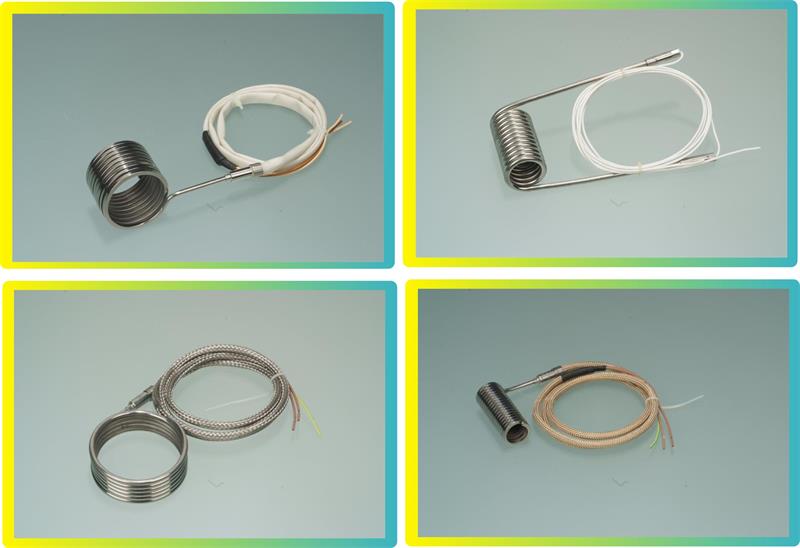

Nozzles injection molding machine Nozzle coil spring heater for hot
runner system
Description:
1) Spring coil heater is made of nickel chrome resistance wire
placed inside chrome nickel steel tube that is filled with MgO
powder.
2) Spring coil heater is also known as high performance tubular
heaters or cable heaters. 3) Spring heater can be produced with or
without built in thermocouples.
4) Spring coil heater is widely used in heating engineering, mold,
plastic industry, including the transfer machinery, medical
equipment, casting process, welding, heat treatment process and
many other industries and fields
5) GME specializes in producing industrial electric heaters with a
strength in R&D. Our products include heating system, ceramic
heaters, cast aluminum/copper heaters, mica heaters, cartridge
heaters, infrared heaters, tubular heaters, immersion heaters,
thermocouples, high temperature insulated wires & cables, etc. We
provide OEM and design services. The other services we are
committed to offer include:
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee
period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.
Specification:
Spring hot runner electric coil heater tube
Stainless steel;
Spring coiled;
Be with thermocoup
Customized welcome
1) Voltage and power according to your requirement
2) Various sizes of cross section, including 4.2*2.2mm, 4*2mm,
3.2*1.8mm, 4*4mm, 3.5*3.5mm, 3*3mm and other specifications
3) High watt density 25w/sq.cm, low watt density 5w/sq.cm.
Temperature: 650 degree
4) Material: stainless steel
5) Thermocouple type J/K/E can be attached.
6) High temperature lead wire and stainless steel shield provided.
| Sectional area | 3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3 |
| Minimum ID | 8mm
|
| Sheath Material | SS304,SS310 |
| Insulation Material | High Pure MgO |
| Resistance Wire | Cr20Ni80 |
| Maximum Sheath Temperature | 700°C |
| Die Electrical Strength | 800V A/C |
| Insulation | > 5 M W |
| Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm// Coil Length + 1mm |
| Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
| Voltage | 12V~380V |
| Wattage | 70W~1000W |
| Build-in thermocouple power | without or with J/K thermocouple |
| Sheath's length | 500/1000/1200/1500/2000mm |
| Available sheath | nylon,metal braided,fiberglass ,silicone rubber, kevlar |
| Sheath's color | standard is black,other color is also available |
| Connector | without or with 5 pin xlr,4 pin min xlr connector |
| Connector' color | silver or fully black |
Related coil heater:
Application:
1) Hot Runner & Bushings
2) Tube Extrusion
3) Pipe Forming
4) Hot Runner Mould
5) Plastic Injection Machine
6) Plastic Extruder Machine
