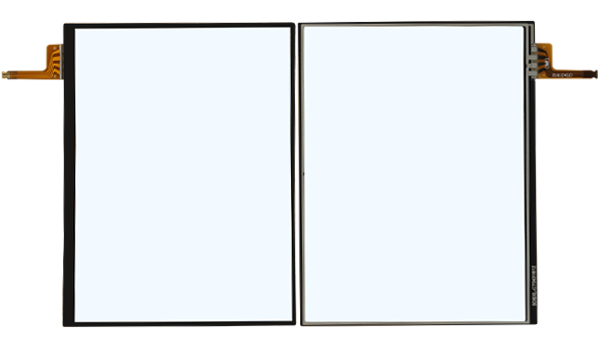

LCD Monitor Game Touch Screen , Single FPC Touch Screen Panel
Resistance
Opening the console up, we can find two screens, with the top one
supporting glasses-free 3D while the smaller bottom screen uses
resistive technology to offer interaction through touch or using
the included stylus. The touch screen is as responsive as ever,
with even light touches being registered accurately. The stylus is
a telescopic metal affair that’s heavier and slightly longer than
its DSi predecessor, and though it’s not quite as comfortable it’s
still perfectly usable.
Yes, Shining is the manufacturer of touch panels. Please feel free
to contact us for more informaiton.
Specifications:
| Structure | F + G |
| Wiring Method | FPC |
| OD | 90.90*71.00mm |
| VA | 86.90*64.75mm |
| Transmittance | >80% |
| Touch Life Span | >3,000,000 times |
| Scoring Life Expectance | >1,000,000 times |
| Linearity | <2.0% |
| Supply Voltage | 3.3V DV, 5V DC |
| Chattering Time | <10 MS |
| Operating Temperature | -20℃-70℃, <90%RH |
| Storage Temperature | -30℃-85℃,<90%RH |
| Operating Force | 60g -100g |
| Insulation Resistance | >20ΜΩ, 25V(DC) |
| Circuit Resistance | X: 200Ω-600Ω Y:300Ω-900Ω |
Description:
1. Some Features of Analog Resistive Technology
a. Resistive touch panel consumes only low power.
b. Because of its simple structure and sensing method, it is
possible to souce a touch panel and controller separately to make a
touch panel unit.
c. Some recent resistive technologies support multi-touch input.
d. Size of over 27-28 inches are difficult to be built in resistive
technology because of the difficulty to make a uniform ITO coating
in such large size. And Shining's technology and equipment, for the
time being, are in a postion to manufacture panels up to 21 inches.
2. Providing Touch Panels Since 2009
As a manufacturer, we provide customized touch panels, including
4-wire resistive touch panel, 5-wire resistive touch panel,
capacitive touch panel, digital touch panel etc. Mostly, we are
able to offer touch panel solutions in a short time.
Currently, we have been supplying touch panels to clients domestic
and abroad. Samsung and Nintendo are two well-known companies of
them.
3. PRC National Standard High Quality Manufacturer
Audited by TUV, our factory complies with the national standard of
high quality manufacturer through the following aspects: genuine
manufacturer, dedicated export team, research and development
capability, trustworthiness and reputation, high quality products,
considerable company size, social and environmental responsibility,
customer service capability.
In 2010, we passed ISO 9001:2008 International Management System
and ISO 14001:2004 + Cor 1:2009 Environmental Management System.
4. High Stability of Staff Makes High Stability of Quality
Over 60% workshop workers have been working in our company since 3
years ago and it is more than 80% of the management. The philosophy
of people-oriented management makes all staff like one.
Additionally, our sales team are able to offer 4 languages service,
including Japanese, Korean, English and Chinese. And we are always
trying our best to support our clients.
5. Dust-free Workshops and Specialized Equipment
In the line of manufacturing touch panels, dust-free workshops and
specialized equipment can basically guarantee the quality,
especially the cleanliness of both resistive touch panels and
capacitive touch panels.
10000-class dust-free workshops cover an area of over 2000 square
meters, in which more than 200 square meters is equipped
with100-class dust-free workshops. Moreover, some key equipment is
introduced from Taiwan, such as IR ovens, Laser machines, etc.
6. Brand Raw Materials Only
In order to produce satisfactory touch panels, we only use brand
materials. In this case, our production has high efficiency.
| Raw Material | Supplier |
| ITO Film | CSG HOLDING |
ITO Glass | CSG HOLDING or TOKEN |
| Cover Lens / Glass | AGC GROUP |
| Conductive Silver Paste | ASAHI or INKTECH |
| Printing Ink | SEIKO |
| OCA | 3M or LG |
7. Detail Makes Difference
Perfect details make our products perfect. Silkscreen of our
analogue resistive touch panels and projected capacitive touch
panels has smooth surface, smooth line, uniform thickness and the
linearity is below 1.5%; the edge is smooth with tolerance below
0.1mm; minimum width of silver line and distance between lines is
0.15mm.
Silk-printing, laminating, cutting, FPC bonding etc. are all
operated by automatic machines and skill-experienced workers.
Almost everything is under our control.
8. 100% Inspection
Every stage of production process is focused on a lot to avoid
mistakes and regarding the cleanliness of appearance and function,
we carry out 100% inspection. What we care most is that each piece
touch panel delivered from our warehouse has to meet our clients’
requirements.
9. Safe Packaging and Delivery
Up till now, every order of our touch panels has reached our
clients abroad successfully without any damage. We pack touch
panels with blister tray or foam box as requested first, certainly,
there is a piece of protective film on it; and second, put into a
bag and make it vacuum; lastly, put into a carton box.
Applications:
| Touch-Function Products | LCD Module |
| Consumer Devices | Mobile Phone, Tablet PC, PDA, MP3, MP4, PMP, Gaming, Web PAD, etc. |
| Automotive, Medical, Industrial | Industrial Controls, Equipment Panels, Medical Device, GPS
Navigation, Rearview Mirror Camera, etc. |
| House-hold Electronics, Financial, Entertainment System, Office
Equipment | POS, ATM, Self-Serve Kiosk, Access Control, Door Phone,
Refrigerator, Microwave Oven, Copier, Fax, Disinfector, etc. |
