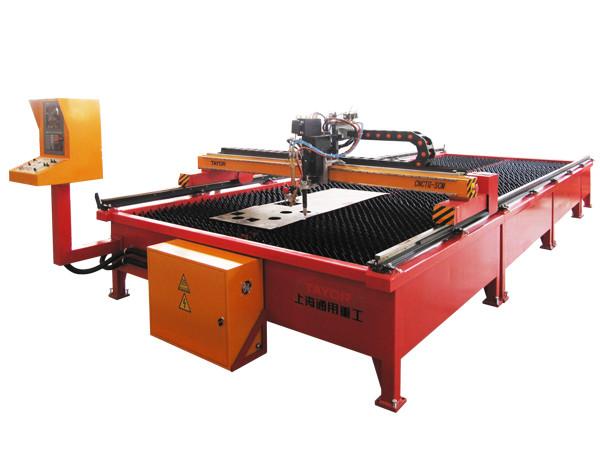

1500x3000mm CNC Plasma Cutting Machine

Name: 1500x3000mm CNC Plasma Cutting Machine
Brand: TAYOR
Price: 1 USD

Add to Cart

1500x3000mm CNC Plasma Cutting Machine

MODEL:CNCTG1530

Item	Descriptions	Specification
Machine Body	Table Width (mm)	2000
	Rail length (mm)	4000
	Effective Cutting Area(mm)	1500x3000
	Drive motor	Dual-drive / Panasonic AC servo motor
	Max traveling speed(mm/min)	9000mm/min
Flame Torch	Flame Cutting Torch Number	1 Set Flame torch
	Flame Cutting Thickness(mm)	6-50mm
	Flame Torch Height Sensor	Height sensor
	Flame Cutting Speed(mm/min)	50-800mm/min
	Flame cutting Gas Pressure	Oxygen:0.5-0.8MPa Flow:1.0M³/Min Fuel Gas :Propane or Acetylene Pressure:0.05-0.1MPa
Plasma Torch	Plasma Cutting Torch Number	1 Set Plasma torch
	Plasma Torch Height Sensor	TAYOR plasma arc Sensor THC
	Plasma Torch Anti-Collision Holder	TAYOR
	Plasma Cutting Speed(mm/min)	50-4500mm/min
	Model	Hypertherm Powremax85
	Plasma Cutting Thickness(mm)	1-15mm(carbon steel)
	Country of origin	Made in USA
	Max current output	85A
	Power	15KW
	Duty cycle	80%
	Plasma Cutting Gas Request	Dry and Oil free compressed
CNC Controller		TAYOR
Nest Software	Nest Software	FASTCAM (Australia)
Electrical Components	PLC	DELTA TAIWAN
Electrical Components	Electric Components	Schneider

Accuracy

Positioning Accuracy	±0.5mm/1000mm
Repeatability	±0.5mm/1000mm
Speed setting error	≤±5%
THC accuracy	≤±0.5mm
Length of a side Error(mm)	±0.5mm
Base Point Return Error	±0.4mm
Intersection point Error	±0.5mm
Lineation forward-reverse Error	±0.2mm
