Double Die Head Film Blowing Machine

    Buy cheap Double Die Head Film Blowing Machine from wholesalers

    Buy cheap Double Die Head Film Blowing Machine from wholesalers
    • Buy cheap Double Die Head Film Blowing Machine from wholesalers

    Double Die Head Film Blowing Machine

    Ask Lasest Price
    Brand Name : Shuanglong
    Model Number : SLSJ
    Certification : CE
    Delivery Time : Within 40days after receiving downpayment
    Payment Terms : T/T
    Supply Ability : 30sets/month
    • Product Details
    • Company Profile

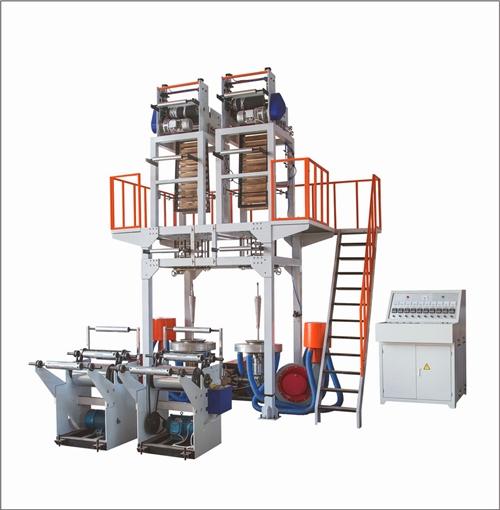

    Double Die Head Film Blowing Machine

    Double Die Head Film Blowing Machine


    Skype: yangshiyan310

    What's App: +86-13958831773

    Email: wzslmachine at 163.com


    Application:

    It is used for blowing high-low pressure polyethylene,which has been widely used for producing laminating film,packing film,agricultural covering film,bag or film for textile and clothing and other packing material,the main motor adopts frequency control of motor speed to timprove the speed regulating stadility of main motor and save electricity by 30%,the screw and material barrel adopt38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type,no matter what size the film is big or small,lt can achieve the best effect of cooling .


    Technical Description:

    1) This film blowing machines is designed to produce plastic film made of low density polyethylene (LDPE), high density polyethylene (HDPE), linear low density polyethylene (LLDPE).

    2) The film blowing machine is designed reasonably and elegantly. It is small and is easy to operate and maintain.

    3) With high output, low energy consumption, good stability and reliability.

    4) The products are widely used in application of package of civil and industrial products such as food, garment, textile and daily necessities etc. It includes vest bag, shopping bag, garment bag and food bag.

    MODELEN/H-45C-2EN/H-55C-2EN/H-65C-2
    SUITABLE MATERIALHDPE
    FILM WIDTH150-450mm150-500mm200-600mm
    FILM THICKNESS0.008-0.03mm0.008-0.03mm0.008-0.03mm
    EXTRUSION OUTPUT20-30kg/hr30-50kg/hr40-65kg/hr
    SCREW I/D LENGTH30: 1
    SCREW MATERIALSACM-645/38 CRMOALA
    MAIN MOTOR11Kw18.5Kw30kw
    DIE SIZEφ 40/60× 2φ 50/70× 2φ 60/80× 2
    OVERALL DIMENSION5.0× 3.5× 3.8m5.0× 3.9× 4.0m5.0× 4.5× 4.5m
