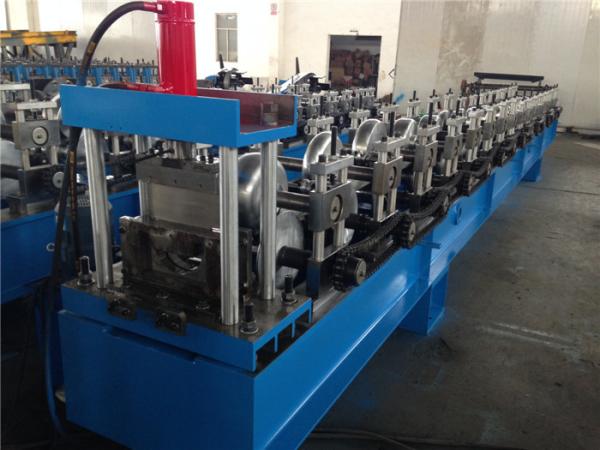

    Round Shape Seamless Gutter Roll Forming Machine Single Chain 15 Stations

    Ask Lasest Price
    Brand Name : Saibo
    Model Number : YX80-170
    Certification : CE/IS09001/SGS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 400 sets per year
    Delivery Time : 50 working days after received deposit
    • Product Details
    • Company Profile

    Round Shape Seamless Gutter Roll Forming Machine Single Chain 15 Stations

    YX80-170 Gutter Roll Forming Machine


    Profile:

    All of our machine profile is customized, below profile is only for your reference.

    1. Coil width: 306mm

    2. Effective width: 170mm

    3. Thickness: 0.4-0.6mm

    Layout:

    Manual de-coiler—Pre-cutting—Feeding—Roll Forming—Cutting—Out table


    Specifications:

    Item NO

    Description


    Offered specification

    1Roll Forming Machine

    Gutter


    2Coil width306mm
    3Rolling Speed12-15m/min(not include cutting time)
    4Rolling Thickness0.4-0.6mm Color steel, G550
    5Control SystemPLC (Panasonic) as list in the note
    6Un Coiler3T hydraulic decoiler
    7Pre-cuttingBy manual
    8Roller StationsAbout 15 stations (according the final design)
    9Roller Material45# forge steel, coated with chrome
    10Shaft Material and DIA¢65mm, material is 45# forge steel
    11Post cuttingHydraulic cutting after forming
    12Maim Motor Power5.5kw
    13Hydraulic Station Power4kw
    14Hydraulic Pressure12-16Mpa adjustable
    15Material Of CuttingCr12Mov quenching 58-62℃
    16Structure Of The StationsGuide pillar
    17Tolerance3m+-1.5mm
    18Electric Source

    380V, 50HZ,3 phase

    According to customer’s require


    19Way Of DriveBy chain
    20Color Of The MachineYellow and blue
    21Size of the machineL*W*H about 7.0m*1m*1.2m
    22Container Need1x40 feet


    Main Features

    1. Simple structure in linear type ,easy in installation and maintenance.

    2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

    3. Running in a high automatization and intellectualization, no pollution

    4. No need foundation, easy operation
