P6 outdoor 360 degree full color 3 face rotate led display screen

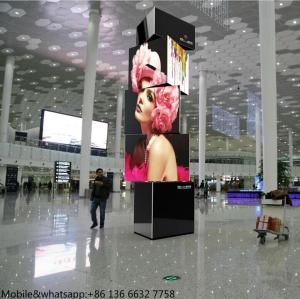

Rotating led screen can be used both for indoor and outdoor. The
three triangular shape structure can hold 9 small screens in total
and each rotates in different speed. When rotation ends, all screen
will be stopped and form a complete advertising images or broadcast
video as you need. The unique design is perfect for major airport,
railway station or high-end shopping center, squares, etc.
Contact :Tina Zhang
Mobile: +86 136 6632 7758
Whatsapp: +86 136 6632 7758
Viber: +86 136 6632 7758
Wechat: zt973787262
Skype: tina.zhang623
For Youtube video links, pls visit:
https://youtu.be/M3e8UYNE7kw
https://youtu.be/VzAvZCPFiM0
https://youtu.be/0hMaJ9l67Z8
Contact : Tina Zhang
Mobile: +86 136 6632 7758
Whatsapp: +86 136 6632 7758
Viber: +86 136 6632 7758
Wechat: zt973787262
Skype: tina.zhang623
Advantage:
1. Natural Heat Dissipation (no cooling system needed)
2. 360 degree rotation
3. Stunning Visual Experience
4. High recall rate and attracting customers
Specifications:
| Item No. | Pixel | LED Module | Screen Size | Total Screen Area | Total Height | Weight | Power Consumption | Cable 380/220V |
| Module Size | Qty | mm | m² | m | kg | Unit Power | Total Power | Average Power |
| mm | pc | | | | | w/m² | kw | kw |
| SP-P4-1 | P4 indoor | 256*128 | 30*9=270 | 1280*768 | 8.85 | 5—6 | 1200 | 750 | 6.64 | 2 | 3/6. |
| SP-P5-1 | P5 indoor | 320*160 | 48*9=432 | 1920*1280 | 22.12 | 6--7 | 2200 | 480 | 10.6 | 4 | 6/9. |
| SP-P5-2 | P5 indoor | 320*160 | 80*9=720 | 2560*1600 | 36.86 | 7--8 | 2600 | 480 | 17.7 | 6 | 8/13. |
| SP-P6-1 | P6 indoor | 384*192 | 56*9=504 | 2688*1536 | 37.16 | 7--8 | 3500 | 350 | 13 | 5 | 6/10. |
| SP-P6-2 | P6 indoor | 384*192 | 56*9=504 | 2688*1536 | 37.16 | 8--9 | 3500 | 900 | 33 | 11 | 15/25 |
| SP-P8-1 | P8 indoor | 256*128 | 143*9=1287 | 2816*1664 | 42.17 | 9--10 | 5600 | 900 | 37.8 | 13 | 17/28 |
| SP-P10-1 | P10 indoor | 320*160 | 117*9=1053 | 2880*2080 | 53.91 | 9--10 | 8200 | 750 | 40.5 | 14 | 18/30 |
| Remark | Screen Vertical Spacing | Rotation Direction | Rotation Speed | Rotation Freeze Frequency | Switch Time | |
| 10mm | 360°conductive ring | 5-10s/r | adjustable | adjustable | |
| P10 Led Display Specification |
| Mechanical ratings |
| Surface flatness | GAP< 1mm |
| Optical Ratings |
| Minimum View Distance | 10 m |
| Gray Scale | 8 bits input, with correction 16384 levels |
| Display Color | 4.4 trillion |
| Brightness Adjustment | 100 Levels with RGB individual adjustment |
| Power Supply |
| Operation Power | MW,AC110V-AC240V 50-60Hz |
| Max Power Consumption | 900W/m2 |
| Average Power Consumption | 450W/m2 |
| Control System |
| Control Mode | Synchronous display with control PC by DVI |
| Frame Update Frequency | 50- 60Hz |
| Screen Refresh Frequency | 1000 Hz |
| Gamma Correction | 16 bits |
| Support Input | Composite Video, S-Video, DVI, CATV |
| Control Distance | Ethernet Cable 100m, Optical fiber 5km |
| Support VGA Mode | 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, |
| Brightness Correction | Dot by Dot, module by module, cabinet by cabinet |
| Reliability |
| Operating Temp. | - 20°~ +60° Celsius degree |
| Operating Humidity | 10 - 90 % RH |
|
