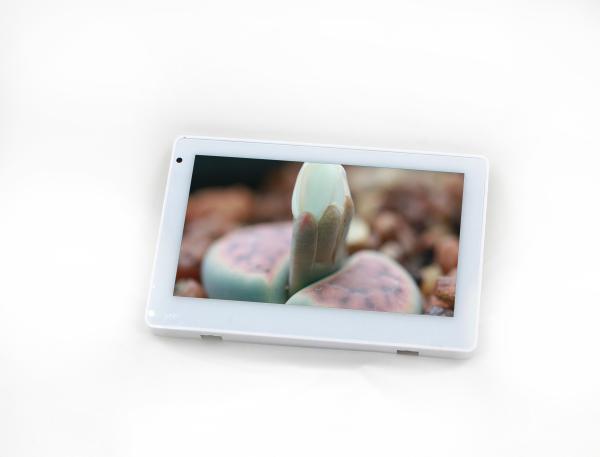

SIBO Flsuh Mount Tablet PC With CBVS and Serial Port
The Tablet PC can directly be embedded into a wall , be placed on
wall / or desktop with rich application for home application and so
on...
For Smart home and control- IPS Screen (G+G glass)
- Android OS
- Inwall / Onwall version
- CBVS , HDMI, Serial port , GPIO , Uart interface
- No buttons design
- Slim Body with 3 Brackets for wall mounting
- Camera & Mic
| Model Number | Q896 | | Hardware Specs | Solution | Allwinner Dual-Core Cortex™-A7 CPU | | CPU | ARM Cortex A7 Dual-Core, 1.2Ghz | | Display | 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2 | | RAM | 1GB | | Nand Flash | 4GB | | | Software Feature | System | Google Android 4.2.2 | | Video | H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP
GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols | | Audio | Integrated 3W Amplifier (No Speakers, Only Speaker connector) | | Language | Support multi-languages | | | Interfaces | Back | Ethernet Interface(RJ45) | | HDMI Out | | USB Socket | | CVBS IN | | DC IN Power Terminal (9V-30V) | | UART, IO, 3W AMP OUT Available | | | Network | WIFI+BLUETOOTH | WIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 | | LAN Port | Ethernet RJ45 | | | Power Supply | DC IN | DC 9V - 30V | | | Boot Up | Auto Boot | Auto Boot Up When Power Supplies | | Software | Auto Run Web App |
Builtin HDMI (standard ) jack,CVBS port, Standard RJ45 port, USB (standard) , Standard serial port (baud
rate from 1200 to 115200) ,GPIO In and Out
It is Wall Tablet , no battrty , no buttoms , it is Serial port
Tablet , It is a GPIO tablet, all good features for home automation
and so on...
Desktop bracket and the mounting picture:
Notice: There is no any battery and buttons as normal Tablet PC ,
auto power on is available !
Builtin HDMI (standard ) jack, CVBS port , Standard RJ45 port, USB
(standard) , Standard serial port (baud rate from 1200 to 115200
Desktop bracket and the mounting picture:
Flush mounting insalltion:

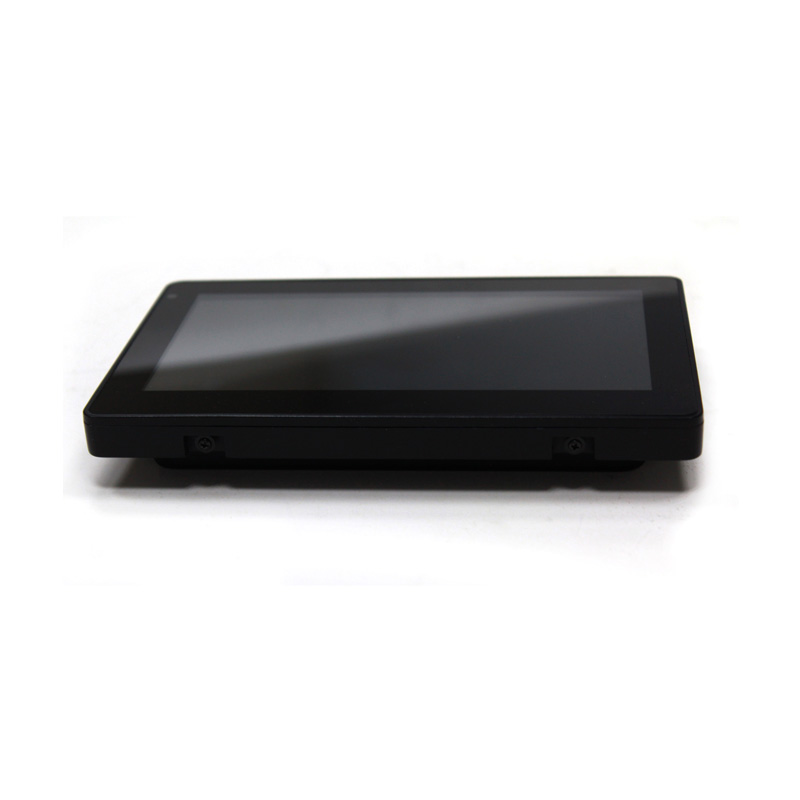

On wall mounting:

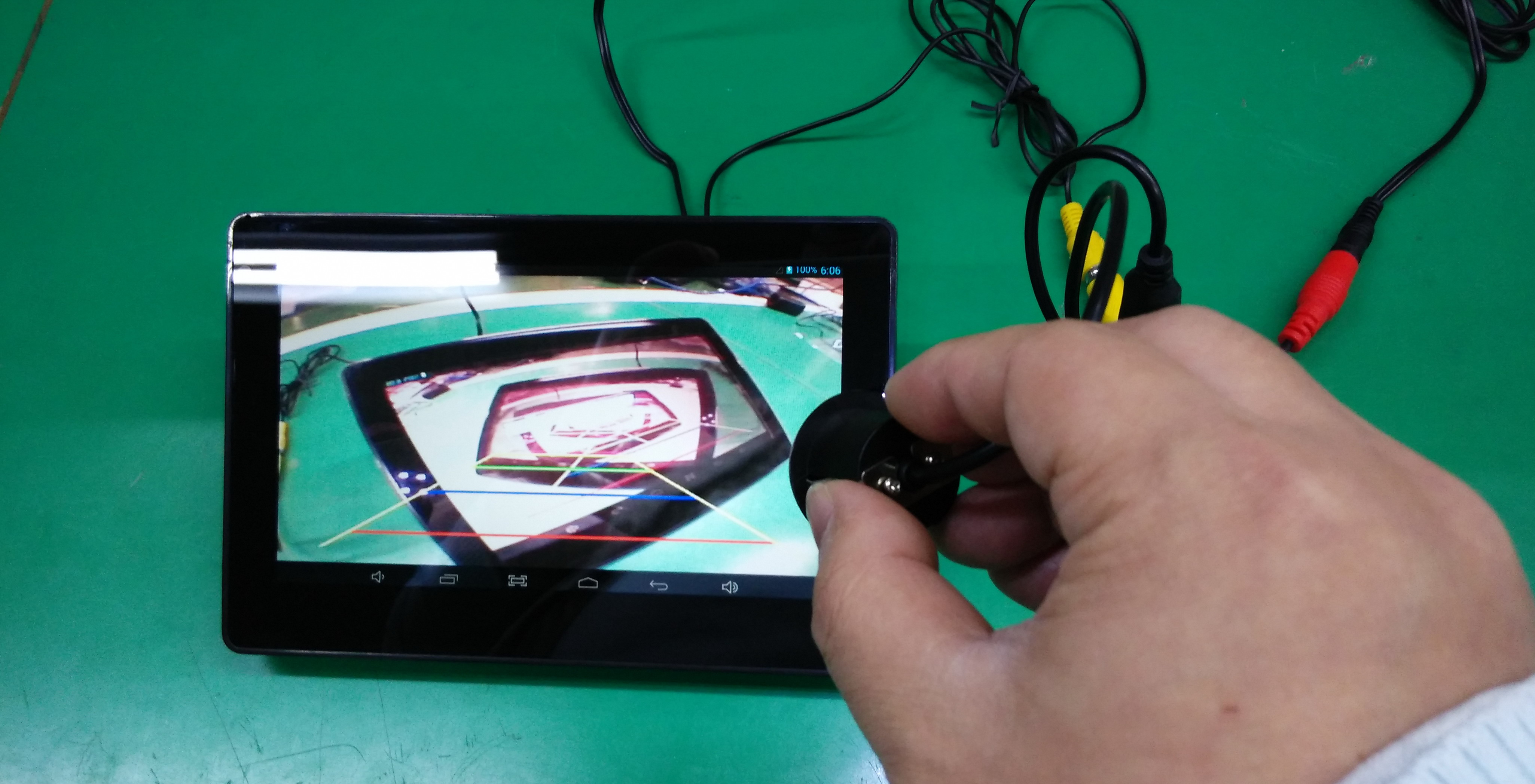

SIBO Android screen with CBVS Camera( Wide angle camera )
 |
