    Custom Copper Tape Screen Round Control Cables , PVC Insulated Cables

    Ask Lasest Price
    Brand Name : SHAN CABLE
    Model Number : KVVP2
    Certification : CE/KEMA/CCC/TUV
    Price : USD 0.4 To 10.5 per Meter
    Supply Ability : 8KM per Day
    Delivery Time : 10-15 Days
    • Product Details
    • Company Profile

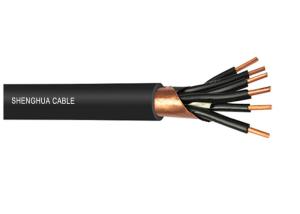

    Custom Copper Tape Screen Round Control Cables , PVC Insulated Cables

    Custom Copper Tape Screen Round Control Cables , PVC Insulated Cables


    Descriptions:


    Conductor: Solid or Stranded Copper Conductor

    Insualtion: PVC

    Screen:Copper tape Screen

    Sheath: PVC


    Operating characteristics


    Rated voltages U0/U: 450/750V

    Permissible Max. continuous operating temperature of conductor:

    PVC insulated: 70°C

    Upon short circuit (Max. Duration time 5s) the Max.

    temperature of conductor not higher than:

    PVC insulated: 160°C;

    Ambient temperature of installation not less than 0°C.


    Standard:


    IEC Standard: IEC 60227, IEC60228

    China Standard: GB9330

    Other standards such as BS,DIN and ICEA upon request

    Certificates


    CE, RoHS, CCC, KEMA and more others at request


    Application:


    For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.


    Why Choose SHAN CABLE


    Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:

    High quality cable product with competitive price;

    OEM cable product

    Custom design per specific cable requirements and budgets;

    Fast and on-time delivery of cable;

    Flexible business deal;

    Chief cable engineer with over 40 years' experience;

    Harmonious colleague and customer relationship;

    All cable products 100% Inspection;

    Comprehensive after-sale service.


    Cross-Sectional
    Area mm2
    Thickness of
    Insulation mm
    Thickness of
    Copper Tape mm
    Thickness of
    Sheath mm
    Overall Diameter
    mm
    Min resistance of
    insulation at
    70℃ MΩ/km
    Max.D.C resistance
    of at 20℃
    MΩ/km
    Approx Weight
    (kg/km)
    minmax
    4x0.750.60.05-0.11.28.19.70.01224.5144
    4x10.60.05-0.11.28.410.20.01118.1153
    4x1.50.70.05-0.11.29.511.40.01112.1190
    4x2.50.80.05-0.11.510.913.10.017.41276
    4x40.80.05-0.11.512.515.10.00854.61367
    4x60.80.05-0.11.513.616.50.0073.08467
    4x1010.05-0.11.717.120.70.00651.83728
    7x0.750.60.05-0.11.29.311.20.01224.5178
    7x1.00.60.05-0.11.29.711.70.01118.1209
    7x1.50.70.05-0.11.51113.30.01112.1239
    7x2.50.80.05-0.11.513.316.10.017.41398
    7x40.80.05-0.11.514.617.60.00854.61528
    7x60.80.05-0.11.51619.40.0073.08717
    7x1010.05-0.11.720.725.10.00651.831145
    10x0.750.60.05-0.11.511.313.70.01224.5214
    10x10.60.05-0.11.512.515.10.01118.1300
    10x1.50.70.05-0.11.514.217.20.01112.1367
    10x2.50.80.05-0.11.716.5200.017.41572
    10x40.80.05-0.11.718.622.50.00854.61787
    10x60.80.05-0.11.720.524.80.0073.08992
