    Constant Current Dustproof DIP SMD LED Display With 5.33mm / 6.67mm / 8mm

    Ask Lasest Price
    Brand Name : EFF
    Model Number : eff/
    Certification : CE/FCC
    Price : according to differnt style
    Supply Ability : according to diffeent products
    Delivery Time : 15-35 workding days after recieved payment
    • Product Details
    • Company Profile

    Constant Current Dustproof DIP SMD LED Display With 5.33mm / 6.67mm / 8mm

    DIP P10 Outdoor Rental Led Display 1R1G1B 5.33mm ,6.67mm , 8mm Led Video Wall


    Description:


    High refresh rate:


    Delicate and smooth picture at high speed shutter, without ripple or flicker; vivid video to restore true picture;
    Visual fresh rate over 3000hz, high performance led display;
    High refresh rate with stable video play and less flash;
    Low fresh rate results in horizontal stripes with camera, and also damage to eyes for too much flash lights.

    High grey scale:


    Rich color leave with low brightness, gradient color gradation excessive smoothly, making perfect performance.
    Normally high quality led display has grey scale of above 14 bit, with color range of 16384
    Low grey scale means insufficient color degree or unsmooth color gradation, which is not able to play good video, decreasing ROI of advertiser.
    Some poor quality led display is detected some clear color blocks with 1/500 shutter.

    High efficiency:


    20% utilization and 20% luminance higher than traditional LED display to enhance the utilization rate of driving circuit and lamp.
    High utilization the LED chip can display a maximum brightness (bit) Brighter than the low LED utilization system, (usually the LED utilization over 90% been called LED top utilization system.)
    The only way to make the low LED chip utilization LED display system achieve high utilization of LED chip is increase the current through the LED chip.
    However, this method will not only use more energy, and will also affect the speed of the current up and down when the driver chips in the case of the same switching time.


    Data Sheet:


    ModelP10 Programmable Led Display
    Pixel Pitch10mm
    Pixel Composition1R1G1B
    LED TypeDIP346
    Pixel Density10000dots/m²
    Scanning method1/4
    Brightness6500cd/m²-10000cd/m² (Practical situation should be subject to the configuration)
    Working VoltageAC110V±10%, 50Hz-60 Hz
    Average Power300W/m²
    Max. Power750W/m²
    Pixel No. on Unit Plate16×16
    Module Size160mm×160mm
    Level up degree<1mm
    Viewable Distance10M -100M
    Viewable AngleHorizontal: 120°, Vertical: 60°
    Screen Weight40kg/m²
    Driving MethodConstant current
    Display Color17M~69G colors
    Bright AdjustmentManual/Automatic/Remote
    Grey Scale256~4096
    Refresh Frequency600 Hz~2440Hz
    Refresh Frame Frequency60Hz
    Display ContentTV picture, ads, video, live streaming video, picture and words
    Display Mode640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640
    Control MethodSynchronous, asynchronous, remote and wireless
    Transmission Distance5E cable≤130M Multimode fibre≤500M monomode fibre≤10KM
    Transmission Distance≥72 hours
    Service Life of Led100,000 hours
    Mean Time Between Failure≥10,000 hours
    Dispersed Incontrollable Point<0.01%
    Continuous Incontrollable PointNo
    Protecting TechnologyWaterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage.
    Temperature of Use Environment-30℃~+50℃
    Moisture of Use Environment10%~90%
    CertificationsCE, ROHS

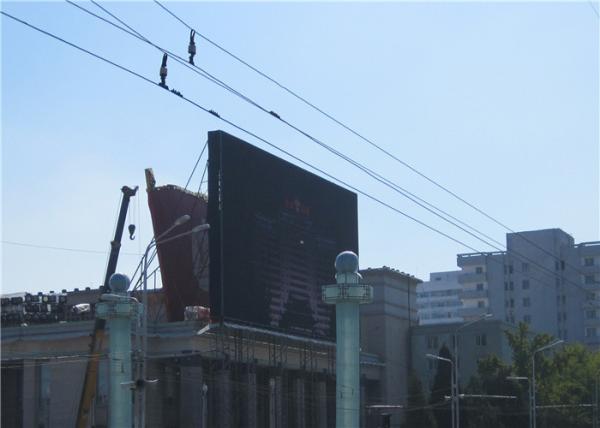

    Applications:

    The RGB LED Display Are Very Popular In Outdoor Field. This Type Screen


    Are Popular Used Outdoor Shopping Center ,Outdoor Building,Foodball Field,crossroad,


    highway,Concert,airport etc;
